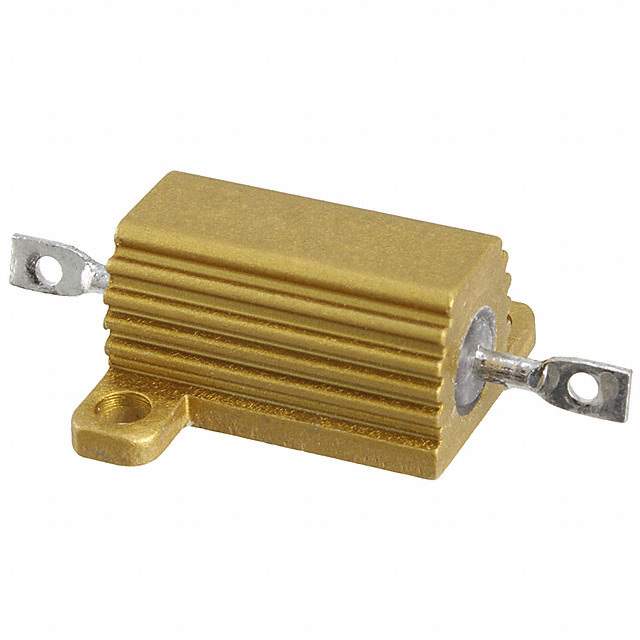

The RER60FR100RC02 is a precision wirewound resistor manufactured by Vishay. It's specifically designed for applications that demand high stability, close tolerance, and a low temperature coefficient of resistance (TCR). This resistor is suitable for use in environments where accuracy and long-term reliability are critical.

Applications

• Precision Current Sensing: Used in applications such as power supplies and motor control systems, where precise measurement of current is essential for optimal operation and safety.
• High-Accuracy Voltage Dividers: Found in test and measurement equipment, instrumentation, and calibration circuits where accurate voltage scaling is needed.
• Reference Resistors in Measurement Bridges: Used in Wheatstone bridge circuits and other bridge configurations to provide a stable and accurate reference resistance.
• High-End Audio Equipment: Employed in preamplifiers and amplifiers to ensure faithful reproduction of audio signals, minimizing distortion.
• Aerospace and Defense Systems: Suitable for critical circuits in aerospace and defense applications where reliability, stability, and precision are paramount.

Features

• High Stability: Provides stable resistance values over a wide range of operating conditions, ensuring consistent performance.
• Tight Tolerance: Offers precise resistance values, minimizing errors in sensitive circuits. The 'R' usually indicates a tight tolerance, often 0.1% or better.
• Low TCR (Temperature Coefficient of Resistance): Maintains resistance value with minimal drift over temperature variations.
• Wirewound Construction: Provides excellent linearity, low noise performance, and high reliability.
• Axial Leaded Package: Simplifies mounting on printed circuit boards and facilitates through-hole assembly.
• Flameproof Silicone Coating: Enhances safety and protects the resistor from environmental factors.

Benefits

• Improved Circuit Accuracy: Tight tolerance and low TCR contribute to more precise and reliable circuit performance.
• Enhanced Reliability: High stability and robust construction ensure long-term reliability in demanding applications.
• Reduced Calibration Requirements: Minimal resistance drift over temperature minimizes the need for frequent recalibration.
• Low Noise Performance: Wirewound construction results in reduced noise compared to other resistor technologies.
• Simplified Design and Assembly: Axial leaded package simplifies board layout and assembly processes.

Additional Details

The RER60FR100RC02 has a resistance value of 100 Ohms. The 'FR' specifies the tolerance and temperature coefficient of the resistance. The resistor features an axial leaded package and a flameproof silicone coating for added protection. Always refer to the official Vishay datasheet for specific power ratings, operating temperature ranges, and other critical parameters to ensure proper application and performance.
