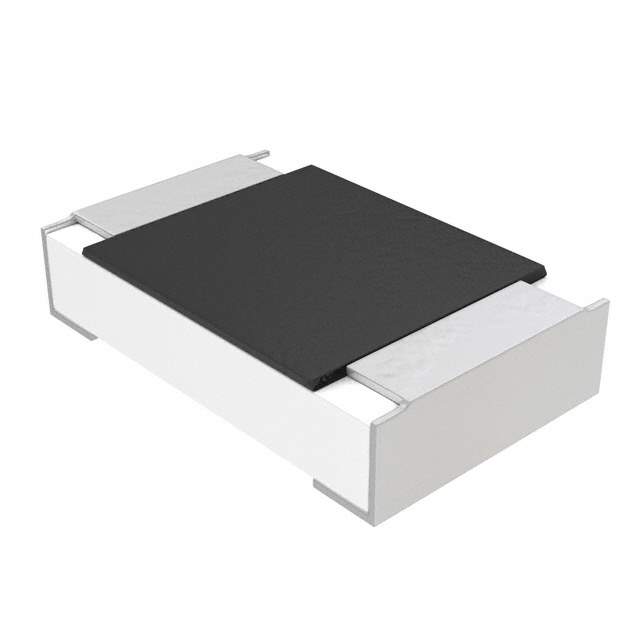

Same model may have multiple batches, images only for reference.

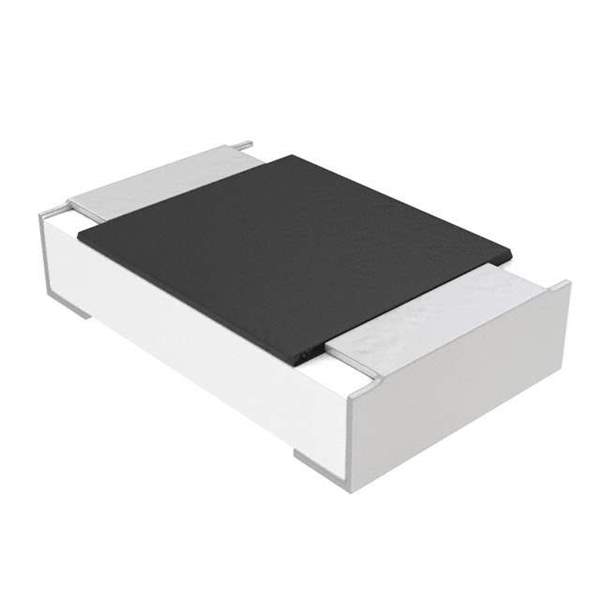

RCV08051M00FKEA Real Image
Same model may have multiple batches, images only for reference.

RCV08051M00FKEA

Part No RCV08051M00FKEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 1% 1/8W 0805 / 1 MOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) High Voltage Thick Film
Datasheet
RCV08051M00FKEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series RCV
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names BC2810DKR,BC2810TR,BC2810CT
Standard Package 5,000
Win Source Part Number 1087775-RCV08051M00FKEA
Ultra Librarian 3D Model Ultra Librarian RCV08051M00FKEA CAD Model

Description

The RCV series chip resistor is a high-voltage resistor with a resistance of 1 mOhms.

  • Resistor type: Thick film
  • Power rating: 0.125W or 1/8W
  • Tolerance: ±1%
  • Temperature coefficient: ±100ppm/°C
  • Operating temperature range: -55°C to 155°C
  • Package: 0805 (2012 Metric)
  • Packaging: Tape and reel
  • Height when seated: 0.020" (0.50mm)
  • Package dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Terminations: Two
  • Supplied by: Vishay Dale
  • Ideal for: Applications that require high-voltage resistors
