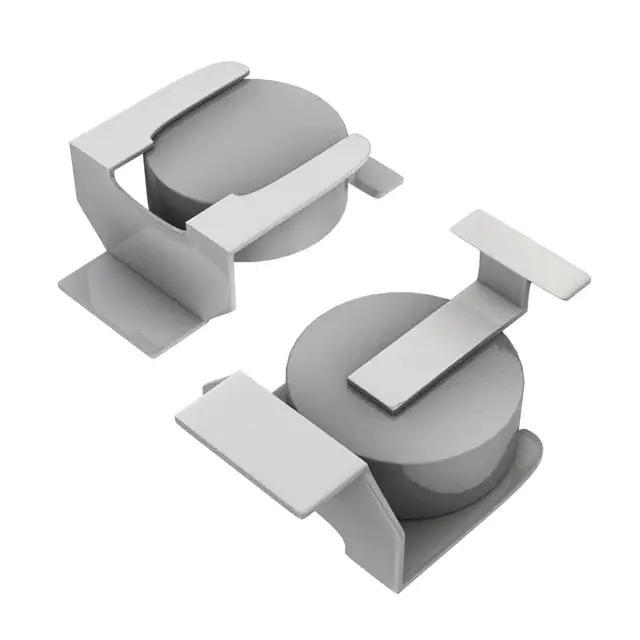

PTCTZ3NR100GTE Vishay
Same model may have multiple batches, images only for reference.

PTCTZ3NR100GTE

Part No PTCTZ3NR100GTE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 245V 165MA 2SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series PTCTZ
Package Tape & Reel
Product Status Obsolete
Type Ceramic
Voltage - Max 245V
Current - Hold (Ih) (Max) 165 mA
Current - Trip (It) 270 mA
Current - Max 2 A
Time to Trip 3 s
Resistance - 25°C (Typ) 10 Ohms
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD
Size / Dimension 0.283" L x 0.394" W (7.20mm x 10.00mm)
Height - Seated (Max) -
Thickness (Max) 0.142" (3.60mm)
Lead Spacing -
Approval Agency -
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1379532-PTCTZ3NR100GTE
Ultra Librarian 3D Model Ultra Librarian PTCTZ3NR100GTE CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components PTCTZ Resettable Fuse is a reliable circuit protection component suitable for various applications.

  • Maximum Current Rating: 2A
  • Maximum Voltage: 245V
  • Construction: Ceramic
  • Mounting: Surface Mount
  • Product Status: Obsolete
  • Operation Temperature: Not specified in original description
  • Time to Trip: 3s
