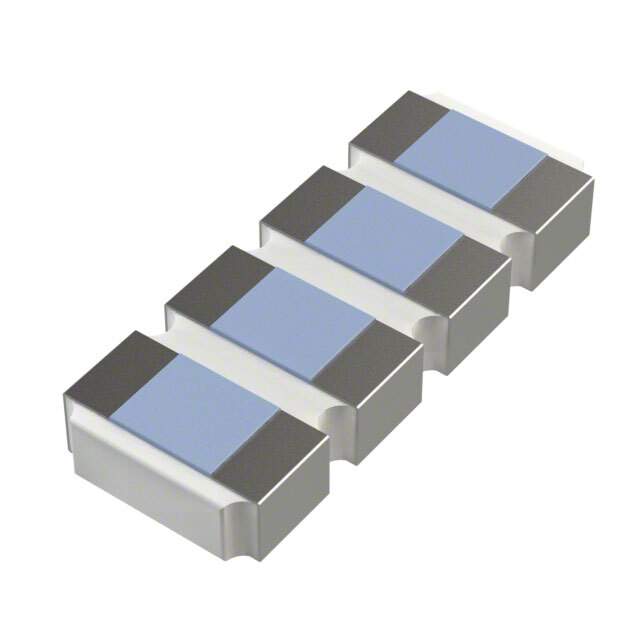

The PRA100I4-100KBWNT is a precision resistor array from Vishay. This resistor network is designed for applications requiring matched resistance values and high stability. It consists of multiple resistors in a single package, offering space savings and improved performance compared to discrete resistor solutions.

Applications

• Instrumentation amplifiers
• Voltage dividers
• Current sensing circuits
• Feedback networks
• Precision measurement equipment
• Gain setting circuits

Features

• Resistance Value: 100 kOhms per resistor
• Tolerance: ±0.1%
• Temperature Coefficient of Resistance (TCR): ±10 ppm/°C
• Power Rating: 100mW per resistor
• Number of Resistors: 4
• Package Type: SIP (Single In-Line Package)
• RoHS Compliant: Environmentally friendly

Benefits

• Matched Resistance Values: Ensures accurate and consistent performance in critical circuits.
• High Stability: Provides reliable resistance values over a wide range of temperatures and operating conditions.
• Space Saving: Integrates multiple resistors into a single package, reducing board space requirements.
• Improved Performance: Minimizes temperature drift and improves overall circuit accuracy.
• Easy to Use: SIP package simplifies installation and reduces assembly costs.
• RoHS Compliant: Meets environmental standards for safe and responsible use.

The PRA100I4-100KBWNT resistor array utilizes thin film technology to achieve excellent stability and accuracy. The matched resistance values and low TCR make it suitable for precision measurement equipment and instrumentation amplifiers. This resistor network is commonly used in applications where accurate and stable resistance values are critical for optimal performance.

Technical Specifications:

Resistance: 100 kOhms

Tolerance: ±0.1%

TCR: ±10 ppm/°C

Power Rating: 100mW per resistor

Operating Temperature Range: -55°C to +125°C
