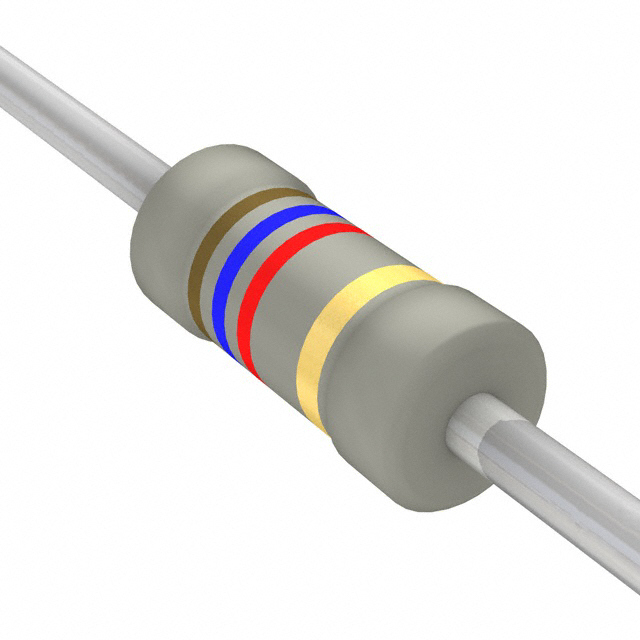

Same model may have multiple batches, images only for reference.
PR03000201004JAC00 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PR03000201004JAC00

Part No PR03000201004JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 1M OHM 5% 3W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 1 mOhms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations 2
Package Cut Tape (CT)
Supply and Demand Status Limited
Win Source Part Number 1580013-PR03000201004JAC00
Ultra Librarian 3D Model Ultra Librarian PR03000201004JAC00 CAD Model
