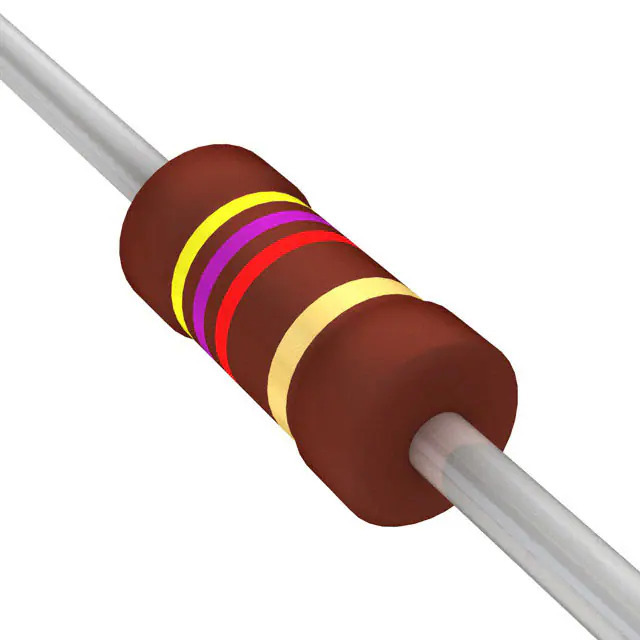

PR02000204701JA100 Vishay
Same model may have multiple batches, images only for reference.

PR02000204701JA100

Part No PR02000204701JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 4.7K OHM 5% 2W AXIAL
Datasheet
PR02000204701JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Product Status Active
Resistance 4.7 kOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374838-PR02000204701JA100
Ultra Librarian 3D Model Ultra Librarian PR02000204701JA100 CAD Model

Description

The PR02000204701JA100 is a through-hole resistor in the PR02 series from Vishay Beyschlag/Draloric/BC Components.

  • Resistance: 4.7 kOhms
  • Tolerance: ±5%
  • Power Rating: 2W
  • Temperature Coefficient: ±250ppm/°C
  • Package: Axial
  • Size: 0.154" diameter and 0.394" length
  • REACH: Unaffected
  • ECCN: EAR99
