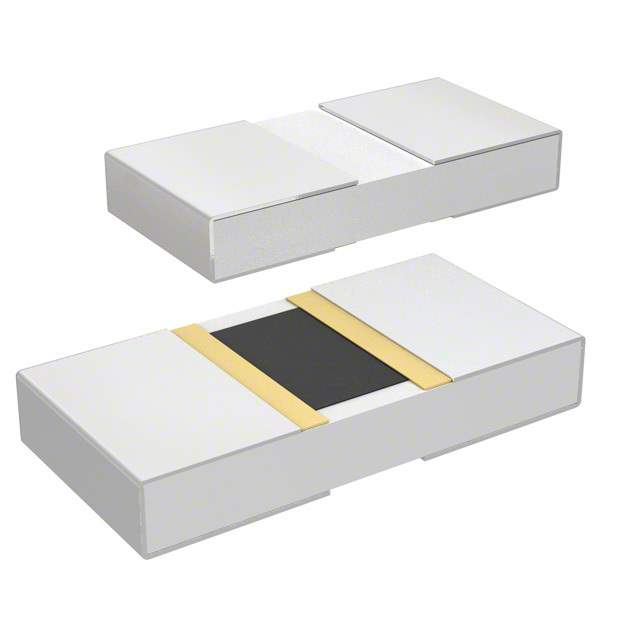

Same model may have multiple batches, images only for reference.

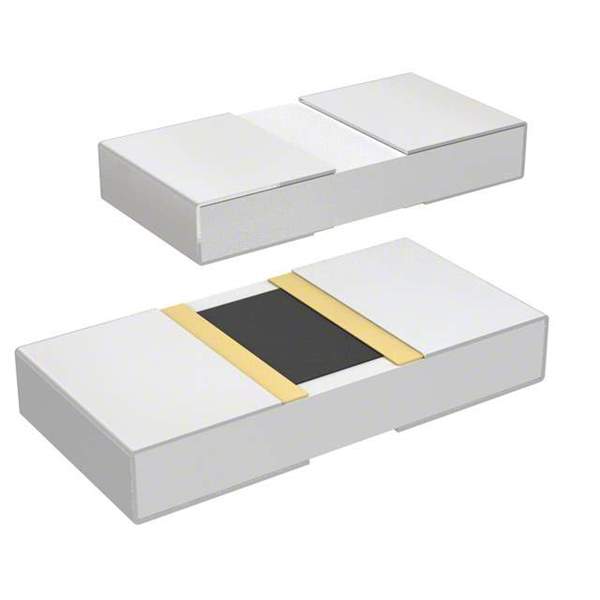

PHP00805E2001BST1 Real Image
Same model may have multiple batches, images only for reference.

PHP00805E2001BST1

Part No PHP00805E2001BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2K OHM 0.1% 5/8W 0805 / 2 kOhms ±0.1% 0.63W, 5/8W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP00805E2001BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 2 kOhms
Tolerance ±0.1%
Power (Watts) 0.63W, 5/8W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349033-PHP00805E2001BST1
Ultra Librarian 3D Model Ultra Librarian PHP00805E2001BST1 CAD Model

Description

The Vishay Dale Thin Film PHP series chip resistor is an ideal surface mount component for various applications. Vishay Dale Thin Film PHP series chip resistor is an ideal surface mount component.

  • Resistance: 2k ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.63W (5/8W)
  • Package/Case: 0805 (2012 Metric)
  • Size: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Features: Moisture Resistant, Flame Proof, Safety Compliant
  • Package: Tape and Reel
  • Standard Package: 1,000
