Same model may have multiple batches, images only for reference.

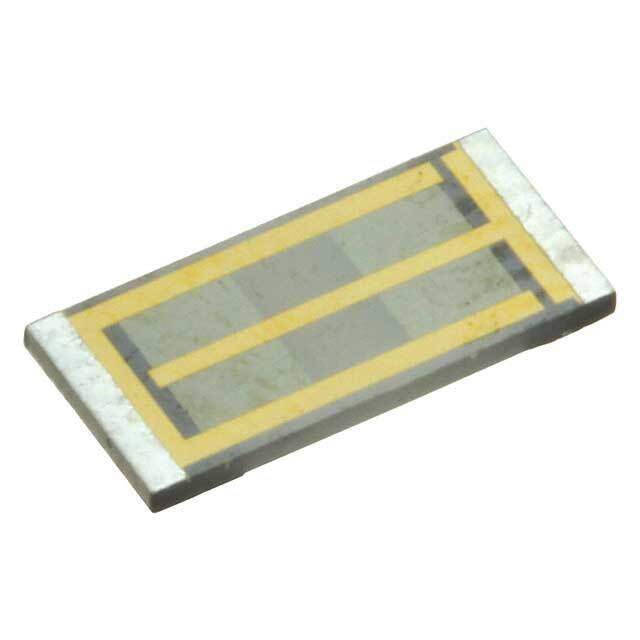

PCAN2512E1000BST5 Real Image
Same model may have multiple batches, images only for reference.

PCAN2512E1000BST5

Part No PCAN2512E1000BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 0.1% 6W 2512 / 100 Ohms ±0.1% 6W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PCAN2512E1000BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCAN
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±0.1%
Power (Watts) 6W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.259" L x 0.124" W (6.58mm x 3.15mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1345603-PCAN2512E1000BST5
Ultra Librarian 3D Model Ultra Librarian PCAN2512E1000BST5 CAD Model

Description

The Vishay Dale Thin Film PCAN2512E1000BST5 is a chip resistor designed for surface mount installation.

  • Series: PCAN
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 6W
  • Resistance: 100 Ohms
  • Terminations: 2
  • Mounting Type: tape & reel packaging
  • Size / Dimension: 0.259" L x 0.124" W (6.58mm x 3.15mm)
  • Height - Seated (Max): 0.018" (0.46mm)
  • Operating Temperature: -55°C ~ 155°C
  • REACH: unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
