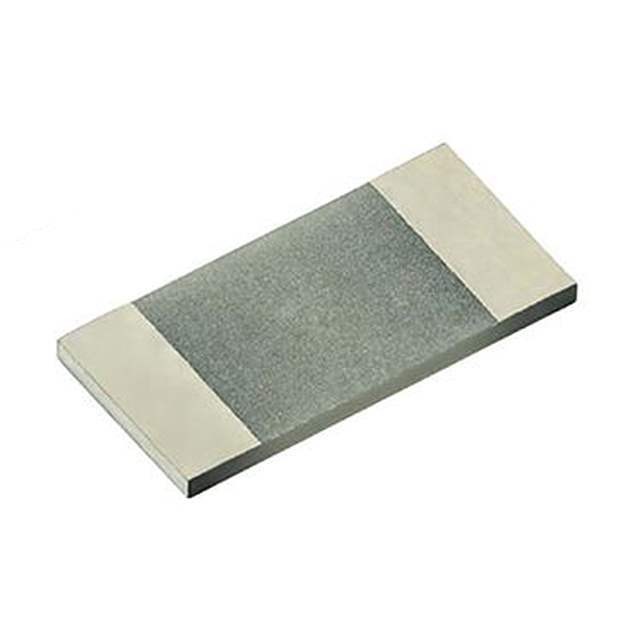

PCAN1206E1500BST5 Vishay Dale Thin Film
Same model may have multiple batches, images only for reference.

PCAN1206E1500BST5

Part No PCAN1206E1500BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 150 OHM 0.1% 2W 1206
Datasheet
PCAN1206E1500BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale Thin Film
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 150 Ohms
Tolerance ±0.1%
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 155°C
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Ultra Librarian 3D Model Ultra Librarian PCAN1206E1500BST5 CAD Model

Description

FEATURES

• High thermal conductivity aluminum nitride substrate

• Power rating up to 6.0 W

• Resistance range 2 Ω to 30.1 kΩ

• Resistor tolerance to ± 0.1 %

• TCR to ± 25 ppm/°C

• Flame resistant UL 94 V-0

APPLICATIONS

• Power supplies

• Power switching

• Braking system
