Same model may have multiple batches, images only for reference.

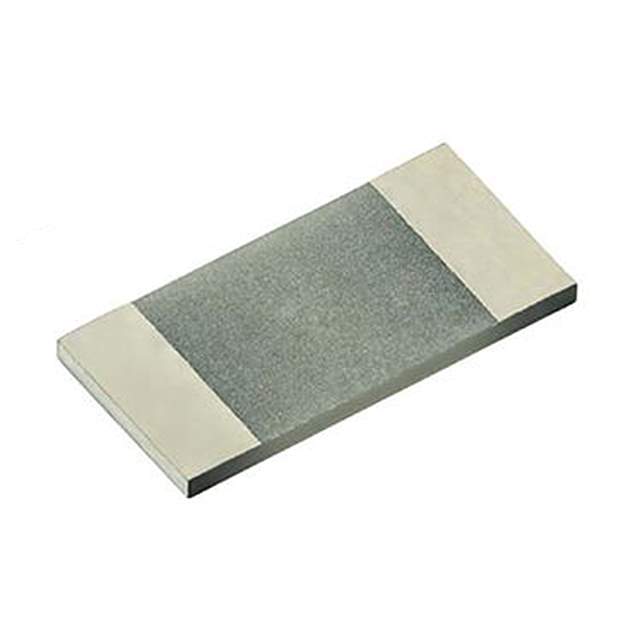

PCAN0805K4R70FST5 Real Image
Same model may have multiple batches, images only for reference.

PCAN0805K4R70FST5

Part No PCAN0805K4R70FST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7 OHM 1% 1W 0805 / 4.7 Ohms ±1% 1W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PCAN0805K4R70FST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCAN
Package Tape & Reel
Resistance 4.7 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338542-PCAN0805K4R70FST5
Ultra Librarian 3D Model Ultra Librarian PCAN0805K4R70FST5 CAD Model

Description

The Vishay Dale Thin Film PCAN0805K4R70FST5 is a chip resistor from the PCAN series.

  • Resistance: 4.7 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 1W
  • Package Type: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Height Seated: 0.018” (0.46mm)
  • Features: Flame Proof, Moisture Resistant, Safety
  • Terminations: 2
  • Packaging: Tape and Reel
  • Operating Temperature: -55°C to 155°C
