Same model may have multiple batches, images only for reference.

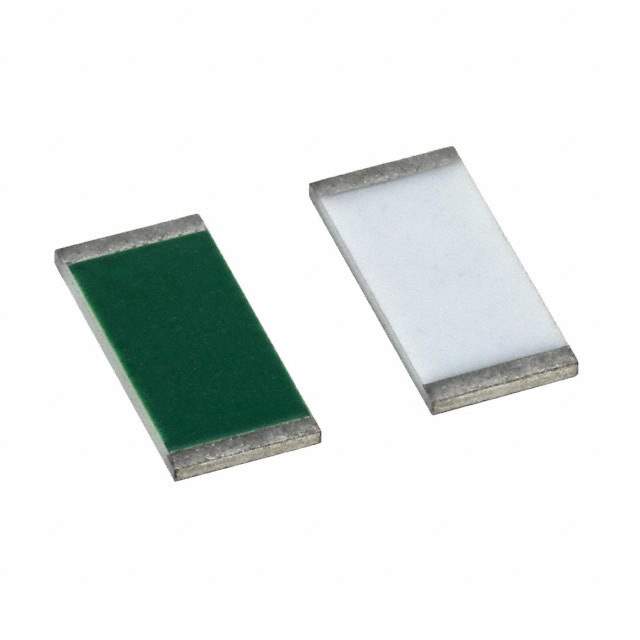

PAT0603E4002BST1 Real Image
Same model may have multiple batches, images only for reference.

PAT0603E4002BST1

Part No PAT0603E4002BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 40K OHM 0.1% 0.15W 0603
Datasheet
PAT0603E4002BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000758-PAT0603E4002BST1
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Resistance 40 kOhms
Tolerance ±0.1%
Power (Watts) 0.15W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Ratings AEC-Q200
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Win Source Part Number Cross
Manufacturer Vishay-Dale
Category Resistors
Packaging Tape and Reel
Operating Temperature Range -55°C ~ 155°C
Ultra Librarian 3D Model Ultra Librarian PAT0603E4002BST1 CAD Model

Description

The Vishay-Dale resistor is a high-quality resistor that can be used in various electronic applications. Vishay-Dale

  • Operating Temperature: -55°C to 155°C
  • Packaging: Tape and reel
  • Cross-Reference: Part, replacement for other resistors
  • Reliability: Reliable and durable component
