Same model may have multiple batches, images only for reference.

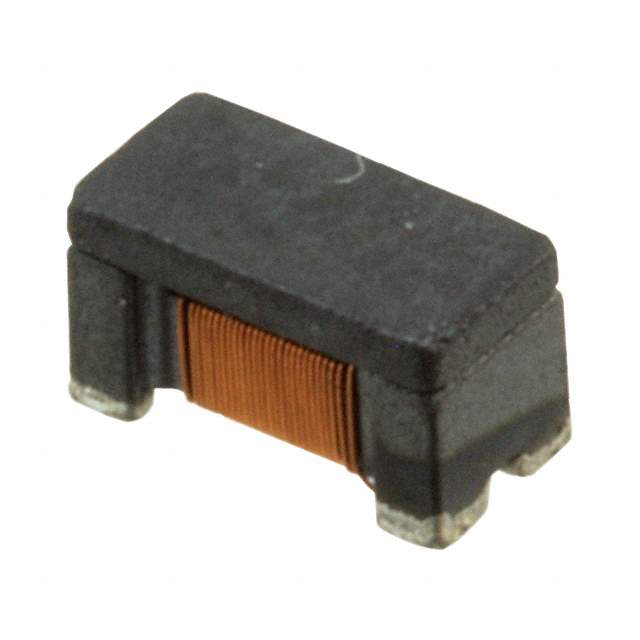

SRF3216-900Y Real Image
Same model may have multiple batches, images only for reference.

SRF3216-900Y

Part No SRF3216-900Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Common Mode Chip Inductors
Datasheet
SRF3216-900Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF3216
Packaging Reel - TR
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Maximum) 400mA
DC Resistance (DCR) (Maximum) 300 mOhm
Voltage Rating - DC 50V
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Size 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Maximum) 0.087" (2.20mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1258761-SRF3216-900Y
Manufacturer Homepage www.bourns.com
Family Name SRF3216
Introduction Date August 29, 2007
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SRF3216-900Y CAD Model

Description

The Bourns Inc. SRF3216-900Y is a horizontal, 4 PC pad filter that is designed to operate in a temperature range of -55°C to 125°C manufactured by Bourns Inc.

  • Operating Temperature: -55°C to 125°C
  • Voltage Rating: 50V DC
  • Current Rating: 400mA
  • Impedance @ 100MHz: 90 Ohm
  • DC Resistance (DCR): 300 mOhm
  • Mounting: SMD
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Family: SRF3216
  • Category: Filter
  • Compliance: Halogen-Free
  • Popularity: Medium
