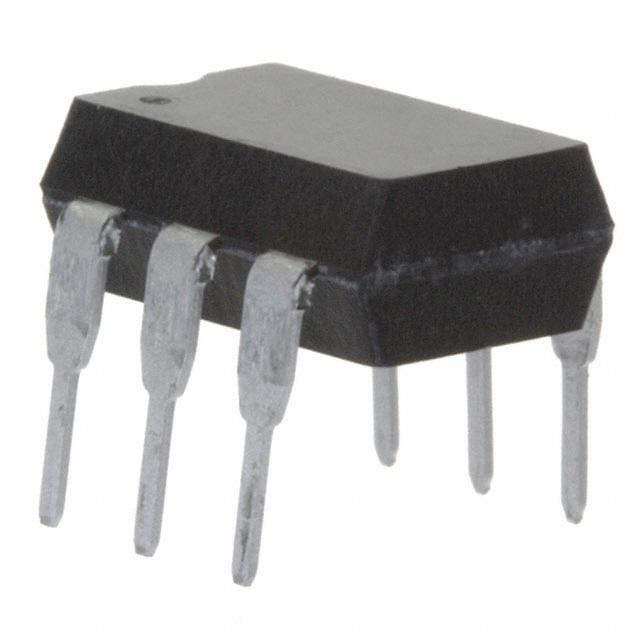

Same model may have multiple batches, images only for reference.
MOC8105 Vishay
Same model may have multiple batches, images only for reference.

MOC8105

Part No MOC8105
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5.3KV TRANS 6-DIP
Datasheet
MOC8105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 65% @ 10mA
Maximum DC Current Transfer Ratio 133% @ 10mA
Switching Turn-On and Turn-Off Time 3μs, 2.3μs
Rise and Fall Time 2μs, 2μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 30V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 131050-MOC8105
Ultra Librarian 3D Model Ultra Librarian MOC8105 CAD Model

Description

The Vishay MOC8105 is an electronic component that has a Win Source Part Number of 131050-MOC8105.

  • Forward Voltage: 1.25V
  • Input Type: DC
  • Channel Count: 1
  • Isolation Voltage: 5300Vrms
  • Temperature Range: -55°C to 100°C
  • Package/Case: 6-DIP
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 2.3μs
  • Maximum Output Voltage: 30V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 60mA
