Same model may have multiple batches, images only for reference.

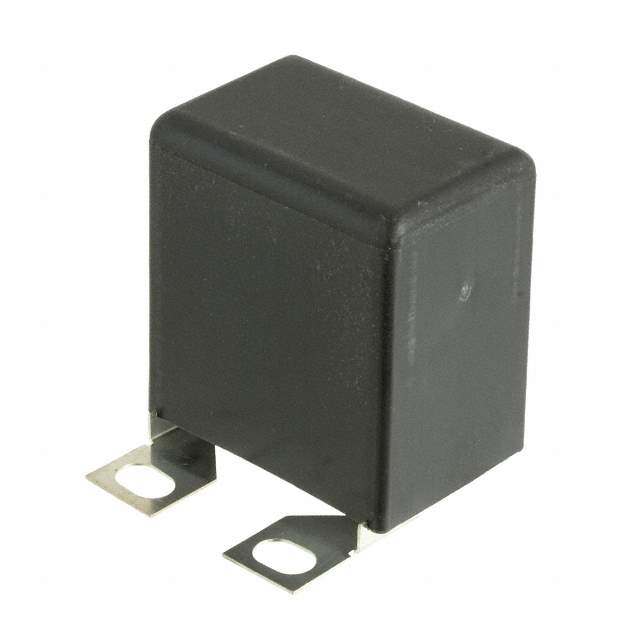

MKP386M520125JT4 Real Image
Same model may have multiple batches, images only for reference.

MKP386M520125JT4

Part No MKP386M520125JT4
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 2UF 5% 1.25KVDC SCREW / 2 µF Film Capacitor 550V 1250V (1.25kV) Polypropylene (PP), Metallized Rectangular Box
Datasheet
MKP386M520125JT4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP386M
Package Bulk
Capacitance 2 µF
Tolerance ±5%
Voltage Rating - AC 550V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5.5 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.732" L x 1.181" W (44.00mm x 30.00mm)
Height - Seated (Max) 1.811" (46.00mm)
Termination Screw Terminals
Lead Spacing 0.866" (22.00mm)
Applications Snubber
Features Low ESR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names BC2801
Standard Package 63
Win Source Part Number 1023979-MKP386M520125JT4
Ultra Librarian 3D Model Ultra Librarian MKP386M520125JT4 CAD Model

Description

The MKP386M520125JT4 is a film capacitor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • ESR Type: Low ESR
  • Capacitance: 2 µF
  • Tolerance: ±5%
  • Voltage Rating (AC): 550V AC
  • Voltage Rating (DC): 1250V DC
  • Application: Snubber
  • Package Type: Rectangular Box
  • Mounting Type: Chassis Mount
  • Lead Spacing: 0.866" (22.00mm)
  • ESR: 5.5 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Operating Temperature: -55°C to 105°C
