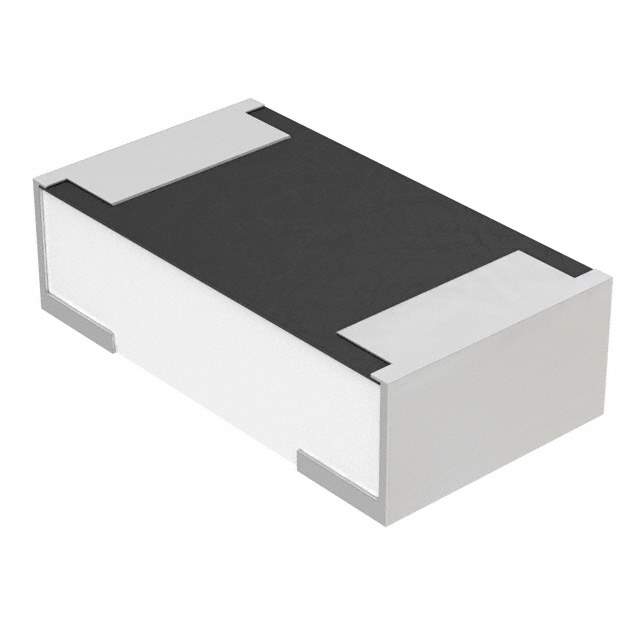

MFU0603FF00800P100 Real Image
Same model may have multiple batches, images only for reference.

MFU0603FF00800P100

Part No MFU0603FF00800P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MNT 800MA 32VDC 0603
Datasheet
MFU0603FF00800P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 800mA
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.0023
Approvals UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.237 Ohm
Win Source Part Number 003453-MFU0603FF00800P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF00800P100 CAD Model

Description

The Vishay MFU0603FF00800P100 is a fast-acting surface mount fuse that comes in a reel packaging.

  • Current Rating: 800mA
  • Voltage Rating: 32V DC
  • Breaking Capacity @ Rated Voltage: 50A
  • Nominal Melting of I2t: 0.0023
  • Nominal Cold Resistance: 0.237 ohms
  • Response Time: fast
  • Approval: UL approved
  • Operating Temperature Range: -55°C to 125°C
  • Description: suitable for use in applications that require a surface mount fuse.
