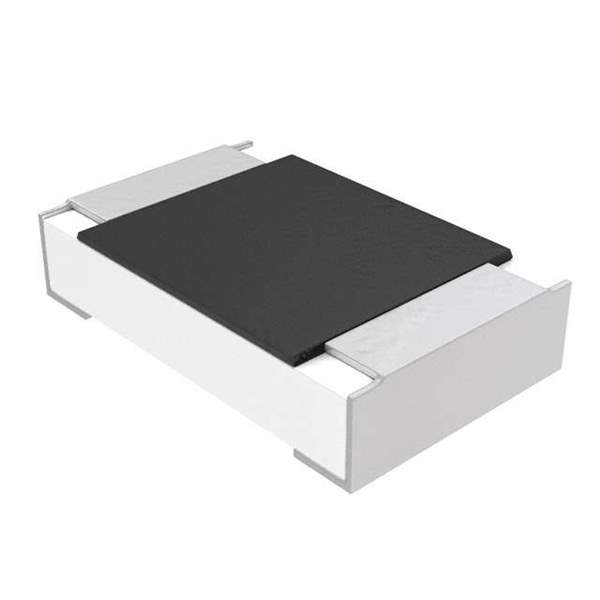

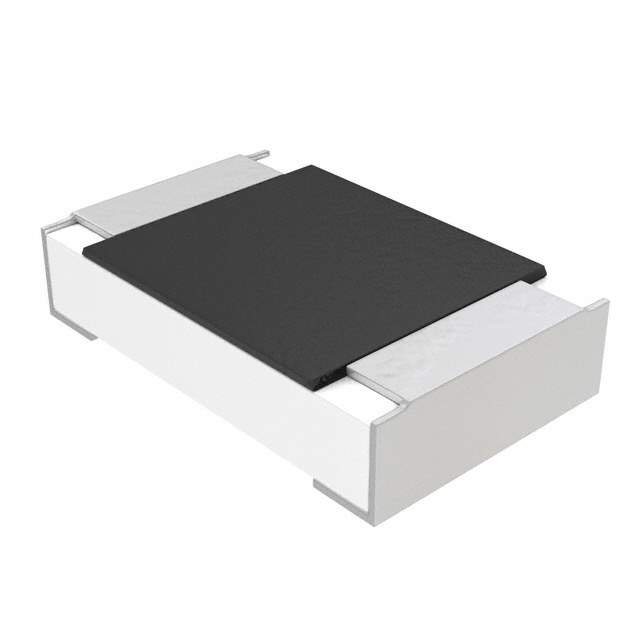

MCU0805MD1000DP500 Real Image
Same model may have multiple batches, images only for reference.

MCU0805MD1000DP500

Part No MCU0805MD1000DP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 0.5% 1/5W 0805 / 100 Ohms ±0.5% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCU AT - Professional
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±0.5%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names MCU0805-100-MDCT,MCU0805-100-MDTR,MCU0805-100-MDDKR
Standard Package 5,000
Win Source Part Number 1078313-MCU0805MD1000DP500
Ultra Librarian 3D Model Ultra Librarian MCU0805MD1000DP500 CAD Model

Description

The MCU AT - Professional series of chip resistors from Vishay Beyschlag/Draloric/BC Components includes the 1078313-MCU0805MD1000DP500 model.

  • Applications: Automotive applications
  • AEC-Q200 Compliant: Yes
  • Resistance: 100 Ohms
  • Power Rating: 0.2W
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Terminations: Two
  • Type: Thin film resistor
  • Package: 0805 (2012 Metric)
  • Operating Temperature Range: -55°C to 175°C
  • Packaging: Tape and reel
  • Standard Package: 5,000 pieces
  • Height: 0.022" (0.55mm)
  • Cross-References: ERA-6AED101V, AT0805DRD07100RL, RT0805DRD07100RL, ERA-6AED910V, RT0805DRE07100RL, and ERJ6RBD1000V
