Same model may have multiple batches, images only for reference.

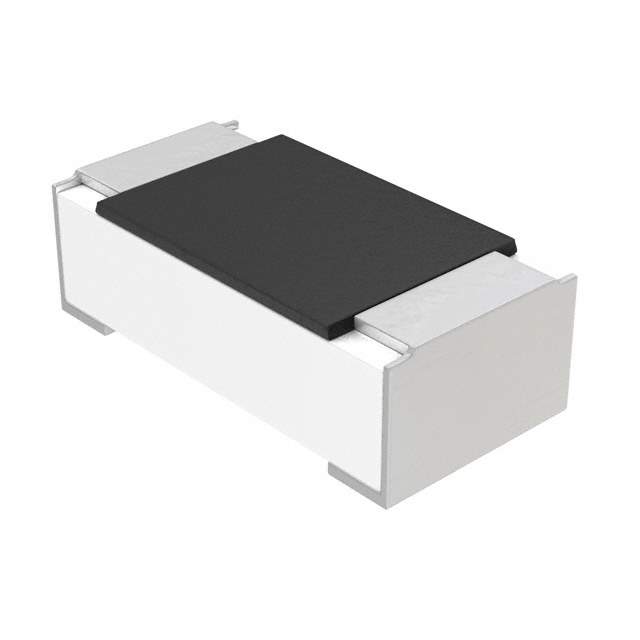

MCS04020C1804FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C1804FE000

Part No MCS04020C1804FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1.8M OHM 1% 1/16W 0402 / 1.8 MOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet
MCS04020C1804FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCS - Professional
Package Tape & Reel
Product Status Obsolete
Resistance 1.8 MOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
Base Product Number MCS0402
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338875-MCS04020C1804FE000
Ultra Librarian 3D Model Ultra Librarian MCS04020C1804FE000 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 1338875-MCS04020C1804FE000 chip resistor is a thin film composition resistor that is anti-sulfur.

  • Resistance: 1.8 MOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 0.063W or 1/16W
  • Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height - Seated (Max): 0.015" (0.37mm)
  • Package/Case: 0402 (1005 Metric)
  • Number of Terminations: 2
  • Standard Package: 10,000
  • Operating Temperature: -55°C ~ 155°C
  • Product Status: Obsolete
