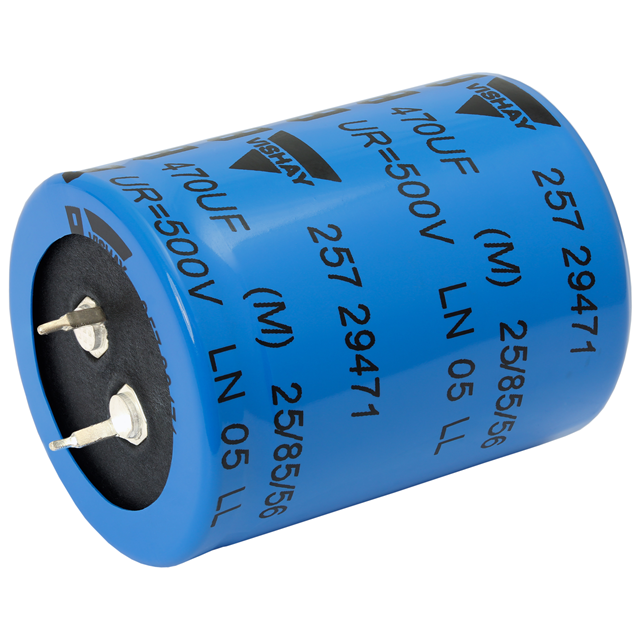

Same model may have multiple batches, images only for reference.

MAL225747221E3

Name: MAL225747221E3
Brand: Vishay
SKU: 1196191
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL225747221E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 820mOhm @ 100Hz 5000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	257 PRM-SI
Package	Box
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	820mOhm @ 100Hz
Lifetime @ Temp.	5000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.59 A @ 100 Hz
Ripple Current @ High Frequency	2.226 A @ 10 kHz
Impedance	680 mOhms
Lead Spacing	0.394" (10.00mm)
Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	56-MAL225747221E3
Standard Package	100
Win Source Part Number	1196191-MAL225747221E3
Ultra Librarian 3D Model	Ultra Librarian MAL225747221E3 CAD Model

Description

The Vishay 1196191-MAL225747221E3 is an aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 450 V.

Capacitance: 220 µF
Voltage Rating: 450 V
Tolerance: ±20%
Impedance: 680 mOhms
ESR: 820mOhm @ 100Hz
Lifetime @ temp.: 5000 Hrs @ 85°C
Polarized: yes
Ripple Current @ low frequency: 1.59 A @ 100 Hz
Ripple Current @ high frequency: 2.226 A @ 10 kHz
Package/Case: radial, can-snap-in
