Same model may have multiple batches, images only for reference.

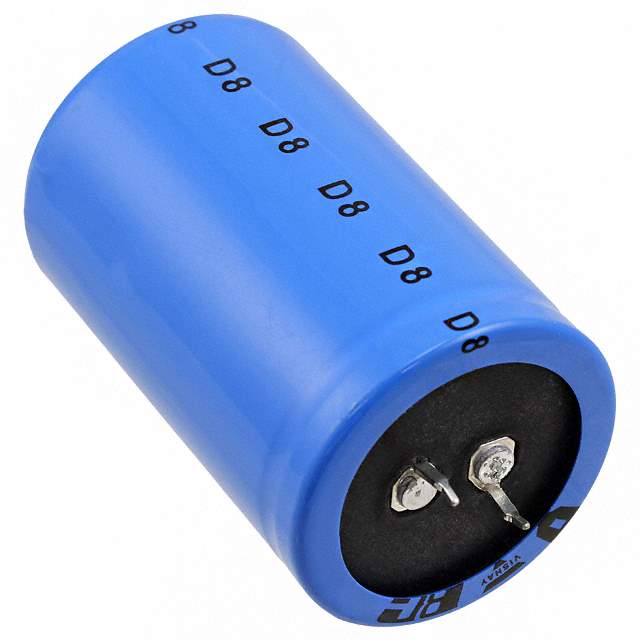

MAL215628392E3 Real Image
Same model may have multiple batches, images only for reference.

MAL215628392E3

Part No MAL215628392E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 3900UF 20% 63V SNAP
Datasheet
MAL215628392E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Series 156 PUM-SI
Packaging Bulk
Capacitance 3900μF
Tolerance ±20%
Voltage Rating 63V
ESR (Equivalent Series Resistance) 61 mOhm @ 100Hz
Lifetime @ Temp. 5000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 3.81A @ 100Hz
Impedance 37 mOhm
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 1.654" (42.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 766313-MAL215628392E3
Popularity Medium
Supply and Demand Status Limited
Family Name 156 PUM-SI
Introduction Date August 20, 2008
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MAL215628392E3 CAD Model

Description

The Vishay BC Components 156 PUM-SI series capacitor from Vishay BC Components is a snap-in, radial, through-hole capacitor.

  • Capacitance: 3900μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Temperature Range: -40°C to 85°C
  • Applications: general purpose power supply, DC filtering, and energy storage
  • Lead Spacing: 0.394" (10.00mm)
  • Impedance: 37 mOhm
  • ESR (Equivalent Series Resistance): 61 mOhm @ 100Hz
  • Ripple Current at Low Frequency: 3.81A @ 100Hz
  • Estimated Lifetime @ Temperature: 5000 hours @ 85°C
  • Packaging: Bulk
  • Diameter: 0.984" (25.00mm)
  • Height: 1.654" (42.00mm)
  • Introduction Date: August 20, 2008
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Limited
