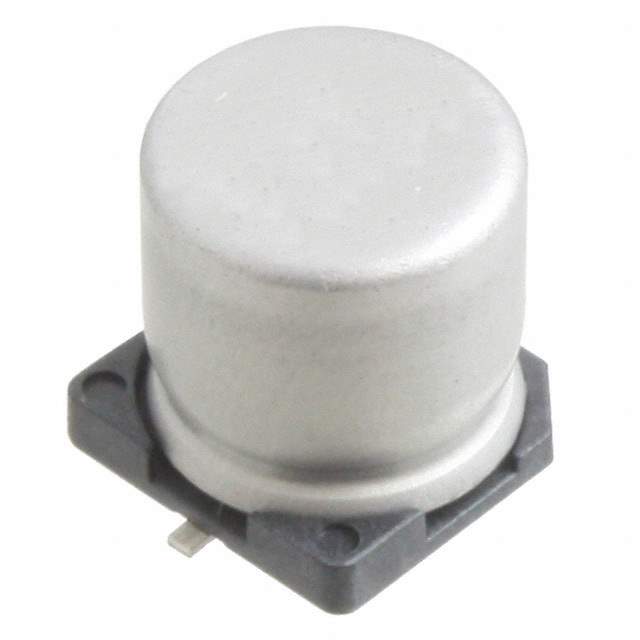

Same model may have multiple batches, images only for reference.

MAL215099001E3

Name: MAL215099001E3
Brand: Vishay
SKU: 991943
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL215099001E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 35V SMD / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2500 Hrs @ 105°C
Datasheet	MAL215099001E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	150 CRZ
Package	Tape & Reel
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2500 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ High Frequency	630 mA @ 100 kHz
Impedance	150 mOhms
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	4396PHDKR,4396PHCT,4396PHTR
Standard Package	500
Win Source Part Number	991943-MAL215099001E3
Ultra Librarian 3D Model	Ultra Librarian MAL215099001E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 991943-MAL215099001E3 is a 220μF, 35V aluminum electrolytic capacitor from the 150 CRZ series.

Capacitance: 220μF
Voltage: 35V
Series: 150 CRZ
Application: Automotive
Tolerance: ±20%
Maximum Height: 0.413" (10.50mm)
Diameter: 0.394" (10.00mm)
Mounting: Surface mountable
Package: Radial, can - SMD
Impedance: 150 mOhms
Ripple Current: 630 mA @ 100 kHz
Lifetime: 2500 hours @ 105°C
Rating: AEC-Q200
