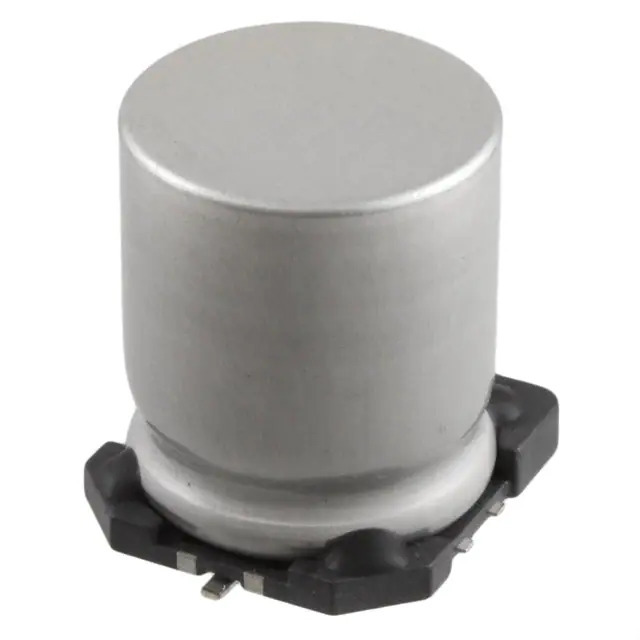

Same model may have multiple batches, images only for reference.

MAL214699511E3

Name: MAL214699511E3
Brand: Vishay
SKU: 1354478
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL214699511E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 4700UF 20% 16V SMD / 4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 6000 Hrs @ 125°C
Datasheet	MAL214699511E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	146 CTI
Package	Tape & Reel
Product Status	Active
Capacitance	4700 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.22 A @ 100 Hz
Ripple Current @ High Frequency	1.75 A @ 100 kHz
Impedance	35 mOhms
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	0.709" L x 0.709" W (18.00mm x 18.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1354478-MAL214699511E3
Ultra Librarian 3D Model	Ultra Librarian MAL214699511E3 CAD Model

Description

The 1354478-MAL214699511E3 is a radial, surface mount aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Capacitance: 4700 µF
Tolerance: ±20%
Rated Voltage: 16 V
Ripple Current (Low Frequency): 1.22 A @ 100 Hz
Ripple Current (High Frequency): 1.75 A @ 100 kHz
Series: 146 CTI
Application: Automotive
Lifetime: 6000 Hrs @ 125°C
Size: 0.709" (18.00mm) Dia
Height: 0.866" (22.00mm)
Mounting Type: Surface Mount
Packaging: Tape & Reel
AEC-Q200: Yes
REACH: Unaffected
