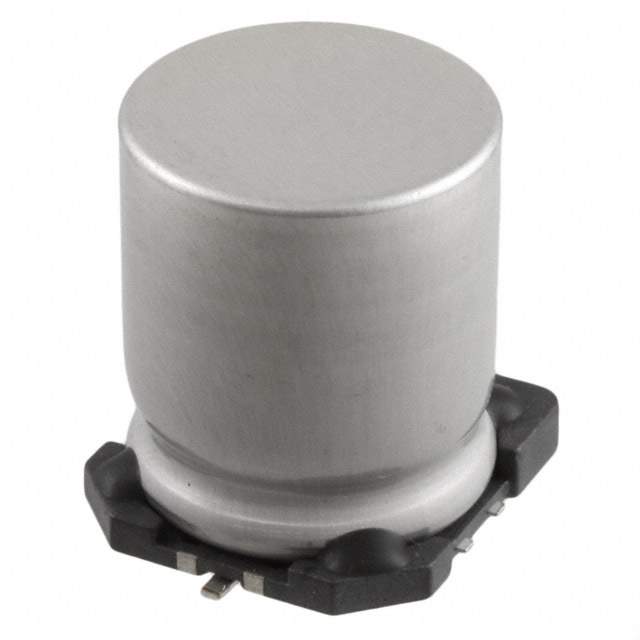

MAL214699112E3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 146 CTI
Package Tape & Reel
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 780 mA @ 100 Hz
Ripple Current @ High Frequency 1.3 A @ 100 kHz
Impedance 70 mOhms
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size 0.709" L x 0.709" W (18.00mm x 18.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 4445PHDKR,4445PHCT,4445PHTR
Standard Package 125
Win Source Part Number 1212577-MAL214699112E3
Ultra Librarian 3D Model Ultra Librarian MAL214699112E3 CAD Model

Description

The 1212577-MAL214699112E3 is a high-quality aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 1000 µF
  • Voltage Rating: 50 V
  • Type: Polarized
  • Package: Radial, Can - SMD
  • Height: 0.689" (17.50mm)
  • Diameter: 0.709" (18.00mm)
  • Tolerance: ±20%
  • Impedance: 70 mOhms
  • Ripple Current (Low Frequency): 780 mA
  • Ripple Current (High Frequency): 1.3 A
  • Lifetime: 5000 Hrs @ 125°C
  • Rating: AEC-Q200
  • Surface Mount Land Size: 0.709" L x 0.709" W (18.00mm x 18.00mm)
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
