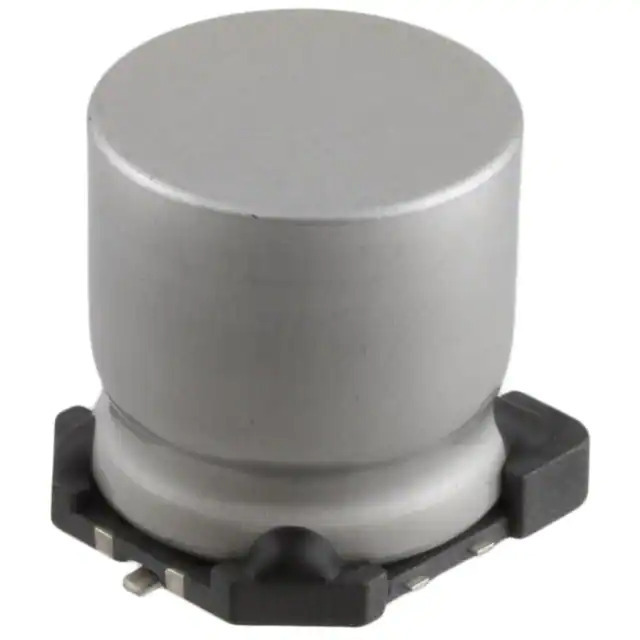

Same model may have multiple batches, images only for reference.

MAL214699111E3

Name: MAL214699111E3
Brand: Vishay
SKU: 1360377
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL214699111E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 50V SMD / 1000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 6000 Hrs @ 125°C
Datasheet	MAL214699111E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	146 CTI
Package	Tape & Reel
Product Status	Active
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	900 mA @ 100 Hz
Ripple Current @ High Frequency	1.5 A @ 100 kHz
Impedance	52 mOhms
Lead Spacing	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	0.630" L x 0.630" W (16.00mm x 16.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360377-MAL214699111E3
Ultra Librarian 3D Model	Ultra Librarian MAL214699111E3 CAD Model

Description

The MAL214699111E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Series: 146 CTI
Capacitance: 1000µF
Voltage Rating: 50V
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Size: 0.630" Dia (16.00mm)
Height: 0.866" (22.00mm)
Temperature Range: -55°C to 125°C
Ripple Current @ Low Frequency: 900mA @ 100 Hz
Ripple Current @ High Frequency: 1.5A @ 100 kHz
Application: Automotive
AEC-Q200 Standard: Yes
