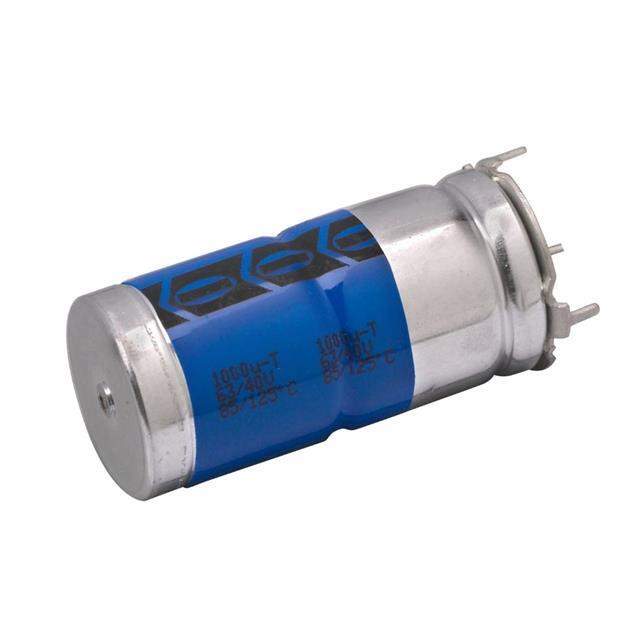

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Series 120 ATC
Packaging Bulk
Capacitance 330μF
Tolerance ±20%
Voltage Rating 100V
ESR (Equivalent Series Resistance) 120 mOhm
Lifetime @ Temp. 8000 Hrs @ 125°C
Operating Temperature Range -40°C ~ 125°C
Applications Automotive
Ripple Current - High Frequency 2.55A @ 10kHz
Impedance 117 mOhm
Lead Spacing 0.364" (9.25mm)
Dimension 0.709" Dia x 1.496" L (18.00mm x 38.00mm)
Mounting Style Through Hole
Package Radial, Can - Mounting Ring - 4 Lead
Win Source Part Number 761722-MAL212049331E3
Popularity Medium
Supply and Demand Status Limited
Family Name 120 ATC
Introduction Date April 26, 2008
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MAL212049331E3 CAD Model

Description

The Vishay BC Components MAL212049331E3 is a radial, can-mounting ring-4 lead capacitor that is part of the 120 ATC series.

  • Capacitance: 330μF
  • Voltage: 100V
  • Tolerance: ±20%
  • Supply and Demand Status: Limited
  • Estimated EOL date: 2026
