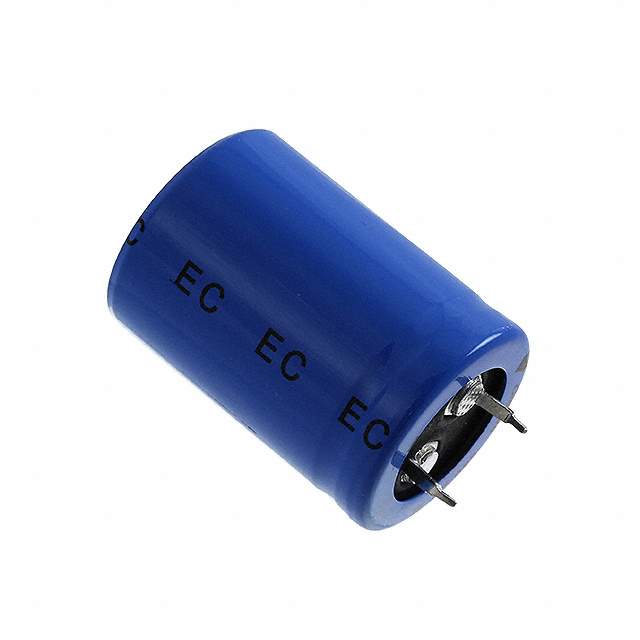

Same model may have multiple batches, images only for reference.

MAL209347221E3

Name: MAL209347221E3
Brand: Vishay
SKU: 629069
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL209347221E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	Aluminum Capacitors Power Miniaturized General Purpose Snap-In \| CAP ALUM 220UF 20% 450V SNAP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay BC Components
Packaging	Tape & Box (TB)
Capacitance	220μF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	730mOhm at 120Hz
Lifetime at Temp.	2000 Hrs at 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current at Low Frequency	1.45A at 120Hz
Impedance	560 mOhms
Lead Spacing	0.394" (10.00mm)
Parts Dimension	0.984" Dia (25.00mm)
Height - Seated (Maximum)	1.457" (37.00mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can - Snap-In
Manufacturer Pack Quantity	100
MSL Level	Not Applicable
Win Source Part Number	1211757-MAL209347221E3
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian MAL209347221E3 CAD Model

Description

The Vishay BC Components 220μF capacitor is a general-purpose through-hole component that is suitable for a wide range of applications.

Capacitance: 220μF
Rated Voltage: 450V
Tolerance: ±20%
Lead Spacing: 0.394 inches (10.00mm)
Impedance: 560 mOhms
ESR: 730mOhm @ 120Hz
Polarized: Yes
Surface Mount Land Size: Not applicable
Operating Temperature Range: -25°C to 85°C
Package: Radial, can-snap-in
Height: 1.457 inches (37.00mm)
Lifetime: 2000 hours @ 85°C
Ripple Current: 1.45A @ 120Hz
