Same model may have multiple batches, images only for reference.

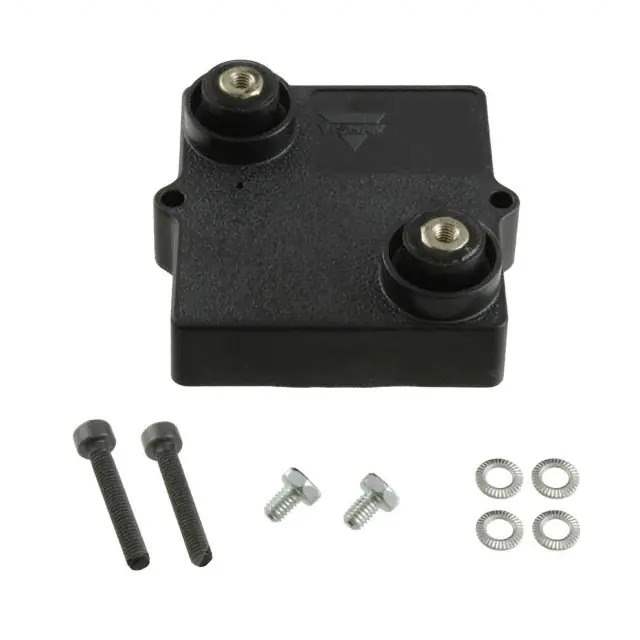

LPS1100H47R0JB Real Image
Same model may have multiple batches, images only for reference.

LPS1100H47R0JB

Part No LPS1100H47R0JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 47 OHM 5% 1100W
Datasheet
LPS1100H47R0JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay
Series LPS 1100
Package Bulk
Product Status Active
Resistance 47 Ohms
Tolerance ±5%
Power (Watts) 1100W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Features Non-Inductive
Mounting Feature Flanges
Size / Dimension 2.362" L x 2.244" W (60.00mm x 57.00mm)
Height - Seated (Max) 1.055" (26.80mm)
Lead Style M4 Threaded
Package / Case Box
Standard Package 15 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 923719-LPS1100H47R0JB
Ultra Librarian 3D Model Ultra Librarian LPS1100H47R0JB CAD Model

Description

The LPS1100H47R0JB is a chassis mount resistor designed for high-power applications.

  • Manufacturer: Vishay
  • Series: LPS 1100 (Non-Inductive)
  • Package: Bulk
  • Standard Package: 15 pieces
  • Resistance: 47 Ohms
  • Power Rating: 1100W
  • Size: 2.362" L x 2.244" W (60.00mm x 57.00mm)
  • Height: 1.055" (26.80mm)
  • Lead Style: M4 Threaded
  • Mounting Feature: Flanged
  • Status: Active
