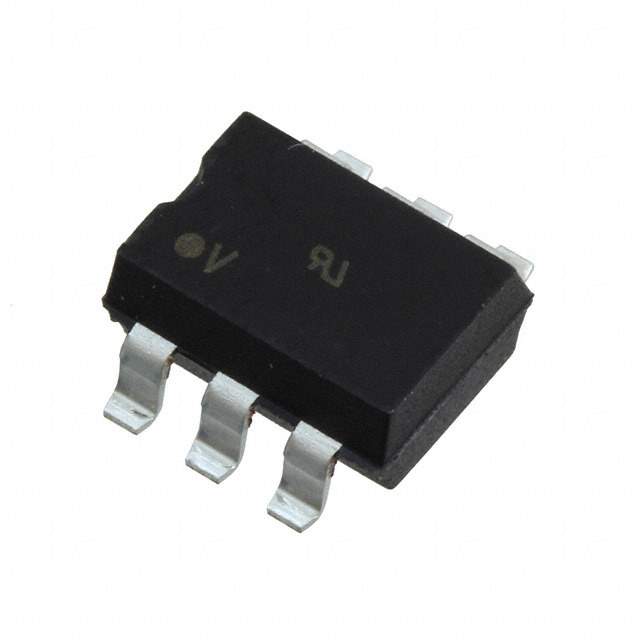

LH1540AAB Real Image
Same model may have multiple batches, images only for reference.

LH1540AAB

Part No LH1540AAB
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR 1 FORM A
Datasheet
LH1540AAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 091958-LH1540AAB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1540AAB CAD Model

Description

The Vishay LH1540AAB is a relay that is used in various electronic applications.

  • Voltage Input: 1.26VDC
  • Circuit Type: SPST-NO (1 Form A) circuit type
  • Load Current: 120mA
  • Voltage Load: 0 to 350 V
  • Maximum On Resistance: 20 Ohm
  • Package: 6-SMD
  • Mounting: SMD (SMT)
  • Category: Relays
  • Status: active
  • Supply and Demand: limited
  • Usage: This is a common-used part in various electronic applications.
