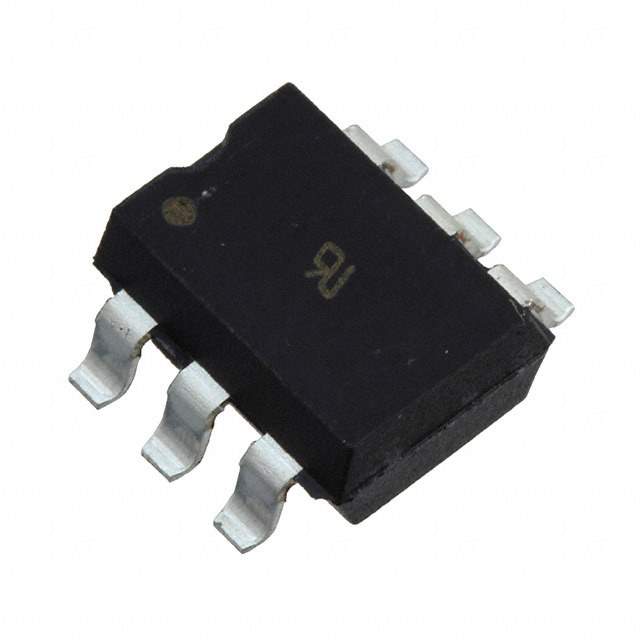

LH1510AABTR Real Image
Same model may have multiple batches, images only for reference.

LH1510AABTR

Part No LH1510AABTR
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR 1 FORM A / Solid State Relay 50mA 1.45V DC-IN 0.35A 200V AC/DC-OUT 6-Pin PDIP SMD T/R
Datasheet
LH1510AABTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 15 Ohm
Load Current 200mA
Voltage - Input 1.27VDC
Voltage - Load 0 to 200 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 018595-LH1510AABTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LH1510AAB
Introduction Date August 28, 2001
ECCN EAR99
Country of Origin China, Malaysia
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian LH1510AABTR CAD Model

Description

The Vishay LH1510AABTR is a single-pole single-throw (SPST-NO) relay with a load current of 200mA and a load voltage of 0 to 200V.

  • Load Current: 200mA
  • Load Voltage: 0 to 200V
  • Maximum On Resistance: 15 Ohms
  • Package: 6-SMD
  • Temperature Range: -55°C to 125°C
  • Moisture Resistant: Yes
  • Description: The LH1510AABTR is widely used in electronic circuits due to its high reliability and low power consumption.
