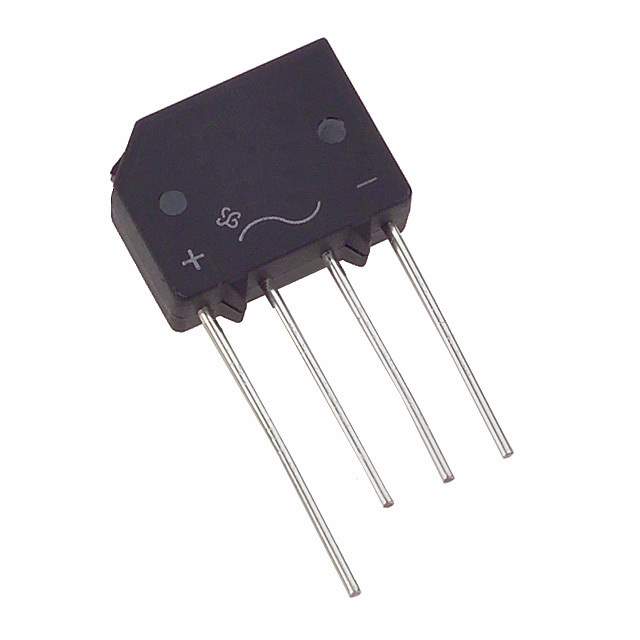

KBP06M-E4/51 Real Image
Same model may have multiple batches, images only for reference.

KBP06M-E4/51

Part No KBP06M-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Glass Passivated Single-Phase Bridge Rectifier | BRIDGE RECT 1P 600V 1.5A KBPM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Maximum) at If 1.05V at 3A
Current - Reverse Leakage at Vr 5μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, KBPM
Supplier Device Package KBPM
Family Part Number KBP06
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Win Source Part Number 1192665-KBP06M-E4/51
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KBP06M-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division electronic component has a Win Source Part Number of 1192665-KBP06M-E4/51.

  • Mounting Type: Through Hole
  • Technology: Single Phase
  • Current - Average Rectified (Io): 1.5A
  • Packaging: Bulk
  • Diode Type: Standard
  • Category: Discrete Semiconductor Products
  • Supplier Device Package: KBPM
  • Status: Obsolete
  • Temperature Range: -55°C ~ 150°C
  • Manufacturer Homepage: www.vishay.com
  • Manufacturer Package: 4-SIP, KBPM
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 600
  • MSL Level: 1 (Unlimited)
  • Voltage - Forward (Vf) (Maximum) @ If: 1.05V @ 3A
  • Current - Reverse Leakage @ Vr: 5μA @ 600V
