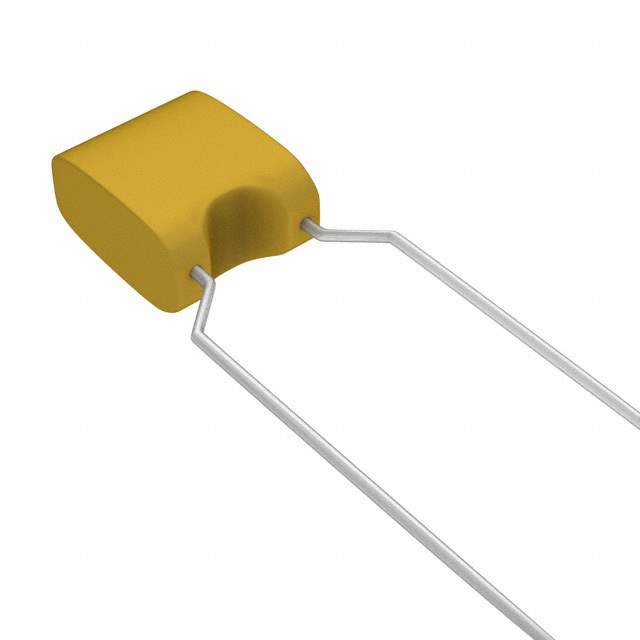

The K104Z15Y5VF5TH5 is a ceramic capacitor manufactured by Vishay. It is a multilayer ceramic capacitor (MLCC) designed for general-purpose applications in electronic circuits. These capacitors are known for their stability, reliability, and small size, making them suitable for a wide range of applications, including decoupling, filtering, and bypass circuits.

Applications

• Decoupling capacitors
• Filtering capacitors
• Bypass capacitors
• Timing circuits
• General-purpose electronic circuits
• Consumer electronics
• Industrial equipment

Features

• High capacitance stability
• Small size
• High reliability
• Lead-free termination
• RoHS compliant
• Multilayer ceramic construction

Benefits

• Provides stable performance over a wide range of temperatures and voltages.
• Saves space on the circuit board due to its compact design.
• Ensures long-term reliability in demanding applications.
• Complies with environmental regulations.
• Suitable for automated assembly processes.
• Offers excellent electrical characteristics.

Technical Specifications

The K104Z15Y5VF5TH5 capacitor has a capacitance value of 0.1μF (microfarads) with a tolerance of +80%/-20%. The voltage rating is typically 16 VDC. The temperature coefficient is Y5V, indicating that the capacitance changes significantly with temperature. The operating temperature range is typically -30°C to +85°C. The capacitor is designed for surface mount technology (SMT), allowing for easy integration into automated assembly lines. The ceramic dielectric material ensures high insulation resistance and low leakage current.

This capacitor is commonly used in decoupling applications to suppress noise on power supply lines and in filtering applications to remove unwanted signals. Its compact size and high reliability make it a popular choice for various electronic devices.
