Same model may have multiple batches, images only for reference.

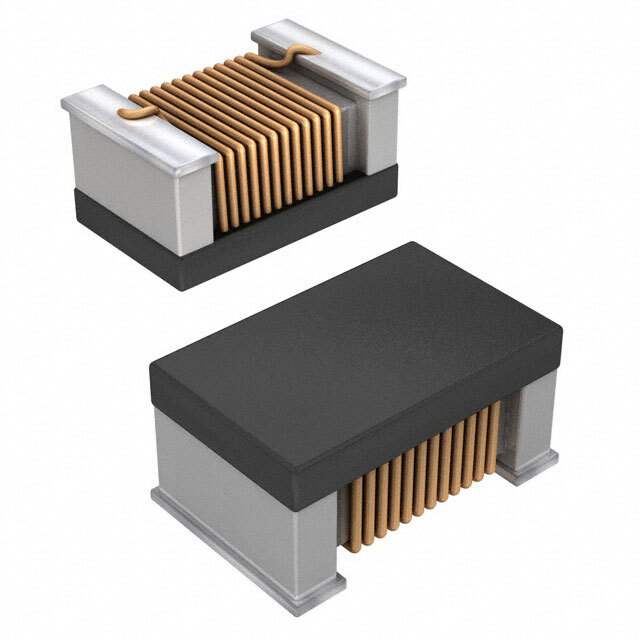

IMC0805ER2R2J01 Real Image
Same model may have multiple batches, images only for reference.

IMC0805ER2R2J01

Part No IMC0805ER2R2J01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 2.2UH 110MA 3.1 OHM
Datasheet
IMC0805ER2R2J01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±5%
Current Rating 110mA
DC Resistance (DCR) 3.1 Ohm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 110MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 068838-IMC0805ER2R2J01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IMC0805ER2R2J01 CAD Model

Description

The Vishay 068838-IMC0805ER2R2J01 is a high-quality wirewound inductor that is designed to meet the demands of modern electronic devices.

With its compact size and reliable performance, this inductor is ideal for use in a wide range of applications.
