Same model may have multiple batches, images only for reference.

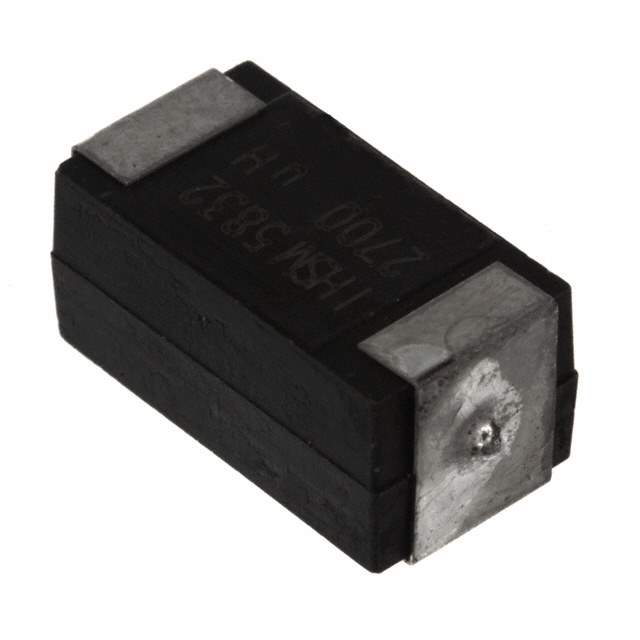

IHSM4825ER1R5L Real Image
Same model may have multiple batches, images only for reference.

IHSM4825ER1R5L

Part No IHSM4825ER1R5L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1.5UH 6.9A 20 MOHM SMD / Inductor Power Molded Wirewound 1.5uH 15% 1KHz Ferrite 6.9A 0.02Ohm DCR 4825 T/R
Datasheet
IHSM4825ER1R5L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Series IHSM-4825
Packaging Reel package
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±15%
Current Rating 6.9A
Current - Saturation 3.5A
Shielding Unshielded
DC Resistance (DCR) 20 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.540" L x 0.250" W (13.72mm x 6.35mm)
Height - Seated (Maximum) 0.225" (5.72mm)
Win Source Part Number 776724-IHSM4825ER1R5L
Popularity Medium
Supply and Demand Status Limited
Family Name IHSM-4825
Introduction Date November 22, 1999
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHSM4825ER1R5L CAD Model

Description

The IHSM4825ER1R5L is a medium-popularity inductor manufactured by Vishay Dale.

  • Win Source Part Number: 776724-IHSM4825ER1R5L
  • Series: IHSM-4825
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 6.9A
