Same model may have multiple batches, images only for reference.

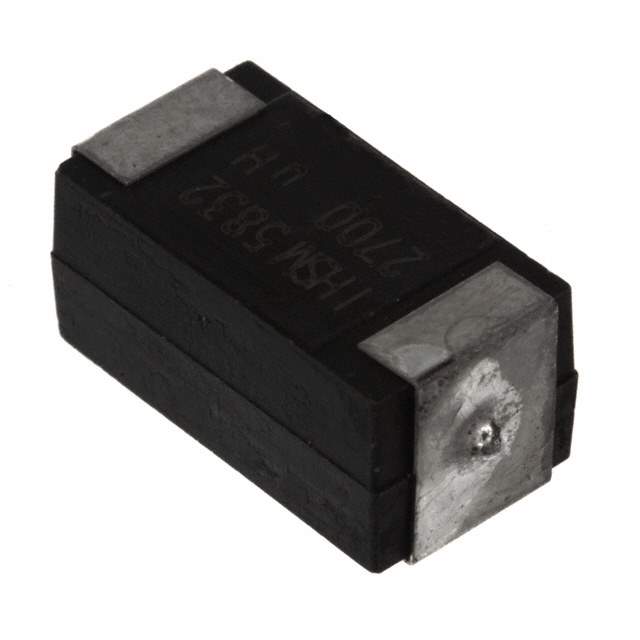

IHSM4825ER100L Real Image
Same model may have multiple batches, images only for reference.

IHSM4825ER100L

Part No IHSM4825ER100L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 10UH 3.1A 71 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Material - Core Ferrite
Inductance 10μH
Tolerance ±15%
Current Rating (Amps) 3.1A
Current - Saturation 1.4A
Shielding Unshielded
DC Resistance (DCR) 71mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.540" L x 0.250" W (13.72mm x 6.35mm)
Height - Seated (Maximum) 0.225" (5.72mm)
Manufacturer Pack Quantity 750
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808375-IHSM4825ER100L
Ultra Librarian 3D Model Ultra Librarian IHSM4825ER100L CAD Model

Description

The IHSM4825ER100L is a shielded inductor from Vishay Dale.

  • Inductance: 10μH
  • Tolerance: ±15%
  • Mounting Style: SMD
  • Package: Reel
  • Maximum DC Resistance (DCR): 71mOhm
  • Current - Saturation: 1.4A
  • Temperature Range - Operating: -55°C ~ 125°C
  • Dimensions: 0.540" L x 0.250" W (13.72mm x 6.35mm)
  • Current Rating (amps): 3.1A
  • Manufacturer Pack Quantity: 750
  • MSL Level: 1 (unlimited)
