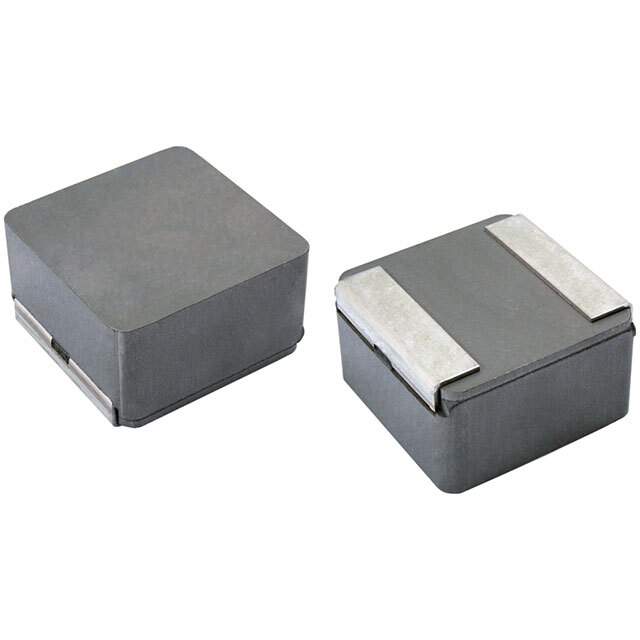

IHLP8787MZER1R0M5A Real Image
Same model may have multiple batches, images only for reference.

IHLP8787MZER1R0M5A

Part No IHLP8787MZER1R0M5A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1UH 69A 0.89 MOHM SMD  /  1 µH Shielded Molded Inductor 69 A 0.89mOhm Max Nonstandard
Datasheet
IHLP8787MZER1R0M5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-8787MZ-5A
Package Tape & Reel
Type Molded
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 69 A
Current - Saturation (Isat) 71A
Shielding Shielded
DC Resistance (DCR) 0.89mOhm Max
Frequency - Self Resonant 25.7MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max) 0.512" (13.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names IHLP8787MZER1R0M5A-ND,541-IHLP8787MZER1R0M5ACT,541-IHLP8787MZER1R0M5ADKR,541-IHLP8787MZER1R0M5ATR
Standard Package 100
Win Source Part Number 1023284-IHLP8787MZER1R0M5A
Ultra Librarian 3D Model Ultra Librarian IHLP8787MZER1R0M5A CAD Model

Description

The IHLP-8787MZ-5A inductor is a fixed inductor that belongs to the category of inductors, coils, and chokes.

  • Construction: Molded
  • Shielding: Shielded
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Height: 0.512 inches (13.00mm)
  • Package: 100
  • Mounting: SMD (SMT)
  • Rating: AEC-Q200
  • Self-Resonant Frequency: 25.7MHz
  • DC Resistance (DCR): 0.89mOhm Max
  • Operating Temperature: -55°C to 155°C
  • Package Type: Nonstandard
  • Dimensions: 0.885 inches L x 0.866 inches W (22.48mm x 22.00mm)
  • Current (Amps): 69A
  • Inductance Frequency-Test: 100 kHz
