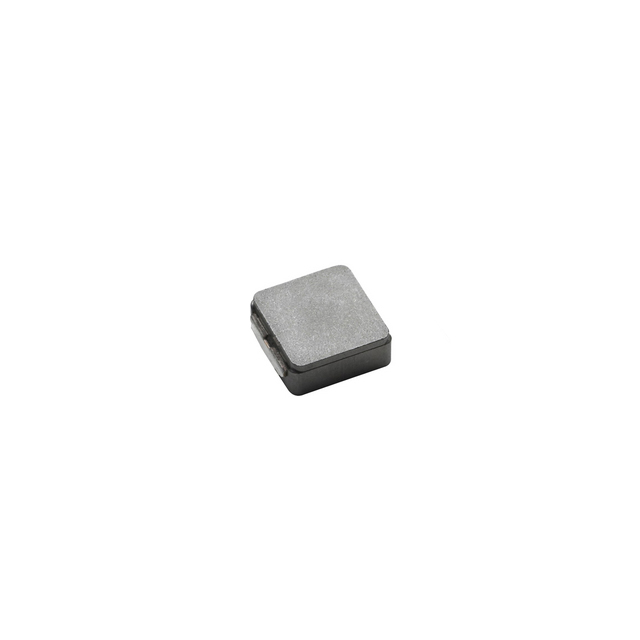

Same model may have multiple batches, images only for reference.

IHLP4040DZET1R0M01

Name: IHLP4040DZET1R0M01
Brand: Vishay
SKU: 1205446
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP4040DZET1R0M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 1UH 17.5A 4.1MOHM SMD / 1 µH Shielded Molded Inductor 17.5 A 4.1mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-4040DZ-01
Package	Tape & Reel
Product Status	Obsolete
Type	Molded
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	17.5 A
Current - Saturation (Isat)	36A
Shielding	Shielded
DC Resistance (DCR)	4.1mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	4040
Dimension	0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-9971-6,541-9971-2,541-9971-1
Standard Package	500
Win Source Part Number	1205446-IHLP4040DZET1R0M01
Ultra Librarian 3D Model	Ultra Librarian IHLP4040DZET1R0M01 CAD Model

Alternative Products

Description

The IHLP4040DZET1R0M01 is a fixed inductor that belongs to the IHLP-4040DZ-01 series of inductors from Vishay Dale.

Series: IHLP-4040DZ-01
Mounting Type: SMD (SMT)
Package: 500
ECCN: EAR99
MSL Level: 1 (Unlimited)
