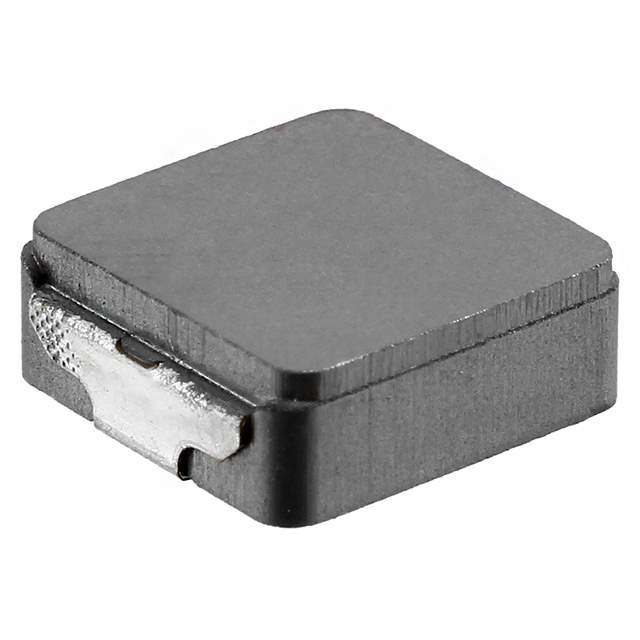

Same model may have multiple batches, images only for reference.

IHLP4040DZERR22M11

Name: IHLP4040DZERR22M11
Brand: Vishay
SKU: 776711
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP4040DZERR22M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 220NH 33A 0.95 MOHM
Datasheet	IHLP4040DZERR22M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-4040DZ-11
Packaging	Reel package
Type	Molded
Inductance	220nH
Tolerance	±20%
Current Rating	33A
Current - Saturation	44A
Shielding	Shielded
DC Resistance (DCR)	0.95 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.430" L x 0.405" W (10.92mm x 10.30mm)
Height - Seated (Maximum)	0.157" (4.00mm)
Win Source Part Number	776711-IHLP4040DZERR22M11
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IHLP4040DZERR22M11 CAD Model

Alternative Products

Description

The Vishay Dale IHLP-4040DZ-11 is a shielded molded inductor with a nonstandard package.

Current Rating: 33A
Inductance: 220nH
Tolerance: ±20%
DC Resistance (DCR): 0.95 mOhm max
Current Saturation: 44A
Test Frequency: 100kHz
Operating Temperature Range: -55°C to 125°C
Dimensions: 0.430" L x 0.405" W (10.92mm x 10.30mm)
Height: 0.157" (4.00mm)
Series: IHLP-4040DZ-11
Applications: Inductors, coils, and chokes
