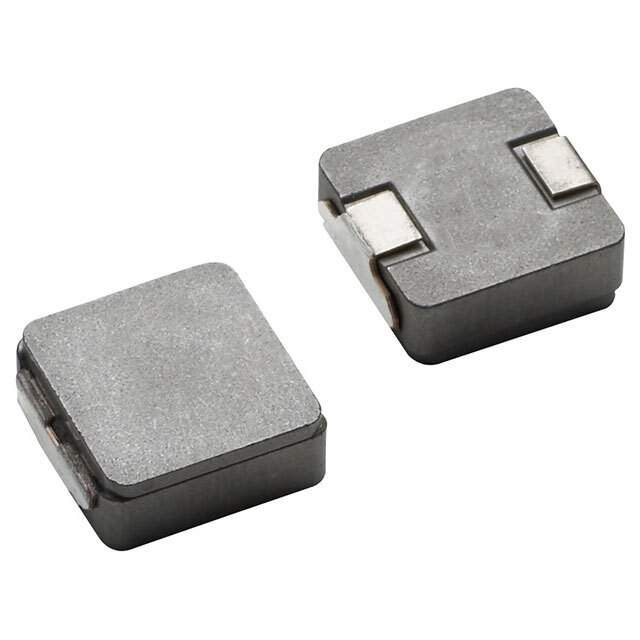

IHLP4040DZER330M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER330M1A

Part No IHLP4040DZER330M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-4040DZ-1A 33 20% ER E3 / 33 µH Shielded Inductor 4.4 A 94.5mOhm Max Nonstandard
Datasheet
IHLP4040DZER330M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-4040DZ-1A
Package Tape & Reel
Material - Core Metal Composite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 4.4 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 94.5mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP4040DZER330M1ACT,541-IHLP4040DZER330M1ADKR,541-IHLP4040DZER330M1ATR
Standard Package 500
Win Source Part Number 983421-IHLP4040DZER330M1A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER330M1A CAD Model

Description

This inductor, coil, choke is a fixed inductor belonging to the IHLP-4040DZ-1A series.

  • Type: Fixed Inductor
  • Series: IHLP-4040DZ-1A
  • Shielded: Yes
  • Package: Tape and reel
  • Inductance: 33 microhenries
  • Height Seated: 0.157 inches
  • Package: Nonstandard
  • DC Resistance (DCR): 94.5 milliohms maximum
  • AEC-Q200 Rated: Yes
  • Current Rating: 4.4 amps
