Same model may have multiple batches, images only for reference.

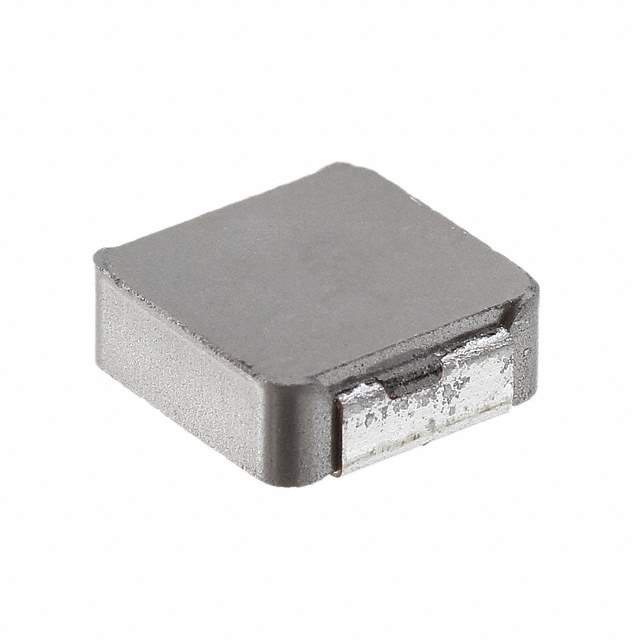

IHLP3232CZER150M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP3232CZER150M11

Part No IHLP3232CZER150M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 15UH 4.3A 85.3MOHM SMD / 15 µH Shielded Molded Inductor 4.3 A 85.3mOhm Max Nonstandard
Datasheet
IHLP3232CZER150M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-3232CZ-11
Package Tape & Reel
Type Molded
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 4.3 A
Current - Saturation (Isat) 3.8A
Shielding Shielded
DC Resistance (DCR) 85.3mOhm Max
Frequency - Self Resonant 11MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-1623-6,541-1623-2,541-1623-1
Standard Package 1,000
Win Source Part Number 1203317-IHLP3232CZER150M11
Ultra Librarian 3D Model Ultra Librarian IHLP3232CZER150M11 CAD Model

Description

This IHLP-3232CZ-11 series fixed inductor is manufactured by Vishay Dale.

  • Inductance: 15 µH
  • Tolerance: ±20%
  • Package: Tape & reel
  • Mounting: SMD (SMT)
  • Height Seated (Max): 0.118" (3.00mm)
  • DC Resistance (DCR): 85.3mOhm Max
  • Temperature Range: -55°C ~ 125°C
  • Current Rating (Amps): 4.3 A
  • Inductance Frequency-Test: 100 kHz
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.4000
