Same model may have multiple batches, images only for reference.

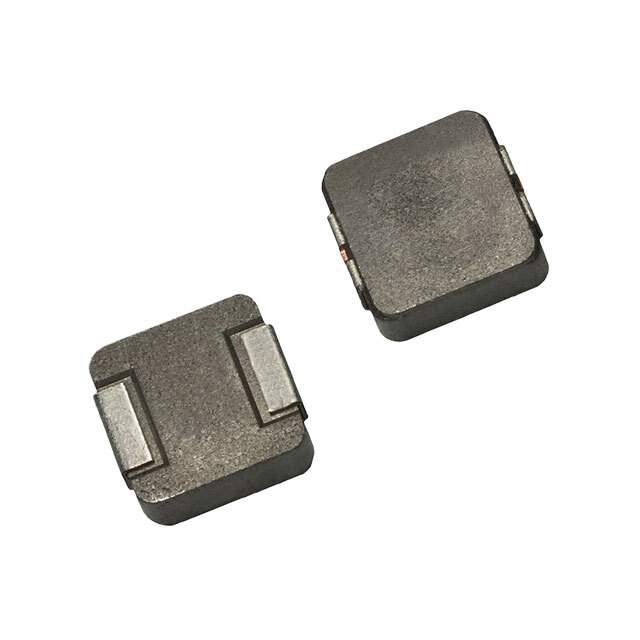

IHLP2020BZER1R0MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP2020BZER1R0MA1

Part No IHLP2020BZER1R0MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-2020BZ-A1 1 20% ER E3 / 1 µH Shielded Inductor 7 A 20mOhm Max Nonstandard
Datasheet
IHLP2020BZER1R0MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-2020BZ-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 16A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Frequency - Self Resonant 62MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP2020BZER1R0MA1TR,541-IHLP2020BZER1R0MA1CT,541-IHLP2020BZER1R0MA1DKR
Standard Package 2,000
Win Source Part Number 984196-IHLP2020BZER1R0MA1
Ultra Librarian 3D Model Ultra Librarian IHLP2020BZER1R0MA1 CAD Model

Description

The Vishay Dale electronic component is a high-quality inductor, coil, choke fixed inductor with a Win Source part number 984196-IHLP2020BZER1R0MA1.

  • AEC-Q200 Rated: yes
  • Current Rating: 7 A
  • Package/Case Dimension: 0.216" L x 0.204" W (5.49mm x 5.18mm)
  • ECCN Compliant: yes
  • HTSUS Code: 8504.50.8000
