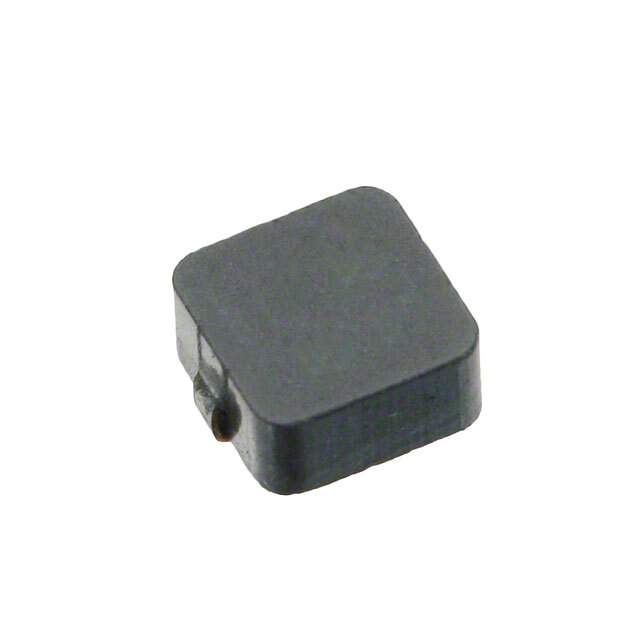

IHLP1212AEERR22M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212AEERR22M11

Part No IHLP1212AEERR22M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 220NH 8.5A 11.4 MOHM / Inductor Power Shielded Wirewound 0.22uH 20% 100KHz Powdered Iron 8.5A 0.0114Ohm DCR 1212 T/R
Datasheet
IHLP1212AEERR22M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Series IHLP-1212AE-11
Packaging Reel package
Type Molded
Inductance 220nH
Tolerance ±20%
Current Rating 8.5A
Current - Saturation 9A
Shielding Shielded
DC Resistance (DCR) 11.4 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Win Source Part Number 776702-IHLP1212AEERR22M11
Popularity Medium
Supply and Demand Status Limited
Family Name IHLP-1212AE-11
Introduction Date December 06, 2010
ECCN EAR99
Country of Origin China, Israel, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP1212AEERR22M11 CAD Model

Description

The Vishay Dale IHLP1212AEERR22M11 is a shielded inductor with a current rating of 8.5A and an inductance of 220nH.

  • Inductance: 220nH
