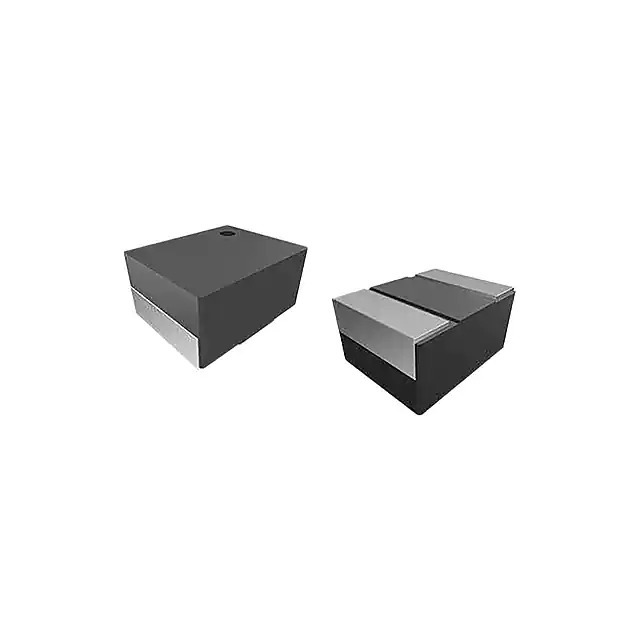

Same model may have multiple batches, images only for reference.
IHHP1008AZER1R0M01 Vishay
Same model may have multiple batches, images only for reference.

IHHP1008AZER1R0M01

Part No IHHP1008AZER1R0M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1UH 3.2A 60 MOHM SMD
Datasheet
IHHP1008AZER1R0M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay Dale
Series IHHP-1008AZ-01
Package Tape & Reel
Product Status Active
Type -
Material - Core -
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package -
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370077-IHHP1008AZER1R0M01
Ultra Librarian 3D Model Ultra Librarian IHHP1008AZER1R0M01 CAD Model

Description

The IHHP1008AZER1R0M01 is a surface mount fixed inductor designed for various electronic applications.

  • Inductance: 1 µH
  • Current Rating: 3.2A
  • Application: Filtering and energy storage tasks.
  • DC Resistance: 60mOhm
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.047" (1.20mm)
  • Package: 1008 (2520 Metric)
  • Mounting Type: Surface Mount
  • Status: Active
