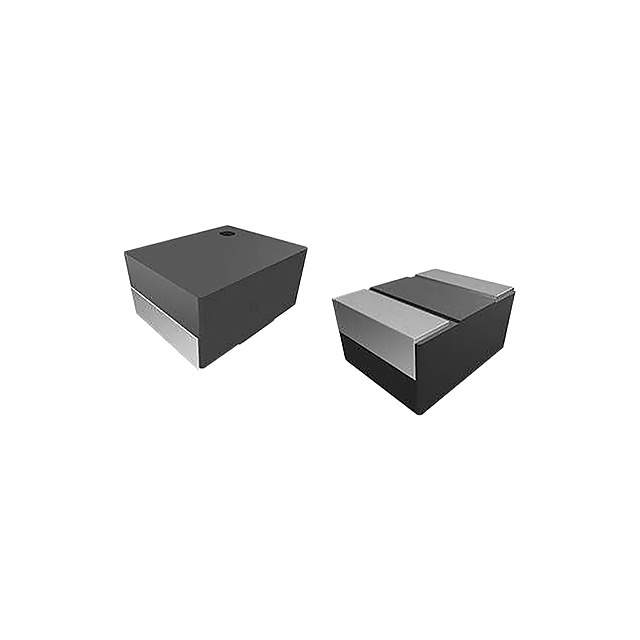

Same model may have multiple batches, images only for reference.

IHHP1008ABER2R2M01

Name: IHHP1008ABER2R2M01
Brand: Vishay
SKU: 1327470
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHHP1008ABER2R2M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 2.3A 90 MOHM SMD / 2.2 µH Shielded Inductor 2.3 A 90mOhm Max 1008 (2520 Metric)
Datasheet	IHHP1008ABER2R2M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	2.3 A
Current - Saturation (Isat)	2.7A
Shielding	Shielded
DC Resistance (DCR)	90mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-2670-6,541-2670-2,541-2670-1
Standard Package	2,000
Win Source Part Number	1327470-IHHP1008ABER2R2M01
Ultra Librarian 3D Model	Ultra Librarian IHHP1008ABER2R2M01 CAD Model

Alternative Products

Description

This fixed inductor is an electronic component that is used to store energy in a magnetic field.

Inductance: 2.2 µH
Tolerance: ±20%
Package: Reel
Quantity per Package: 2000
Package/Case: 1008 (2520 Metric)
Mounting: Surface-mounted
Manufacturer: Vishay Dale
RoHS: Compliant
