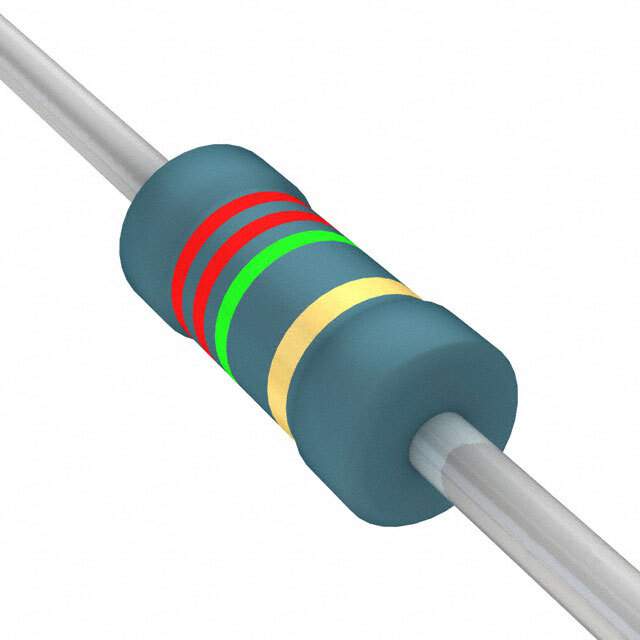

Same model may have multiple batches, images only for reference.

HVR3700002204JA100

Name: HVR3700002204JA100
Brand: Vishay
SKU: 1173887
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HVR3700002204JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 2.2M OHM 5% 1/2W AXIAL / 2.2 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial High Voltage, Pulse Withstanding Metal Film
Datasheet	HVR3700002204JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	HVR37
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	2.2 MOhms
Tolerance	±5%
Power (Watts)	0.5W, 1/2W
Composition	Metal Film
Features	High Voltage, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.157" Dia x 0.394" L (4.00mm x 10.00mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	BC4436CT,BC4436TB
Standard Package	1,000
Win Source Part Number	1173887-HVR3700002204JA100
Ultra Librarian 3D Model	Ultra Librarian HVR3700002204JA100 CAD Model

Description

The HVR37 is a through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

Resistor Type: Through-Hole
Manufacturer: Vishay Beyschlag/Draloric/BC Components
Resistance: 2.2 MOhms
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Power (Watts): 0.5W, 1/2W
Material: Metal Film
Terminations: 2
Package/Case: Axial
Supplier Device Package: Axial
Operating Temperature Range: -55°C to 155°C
