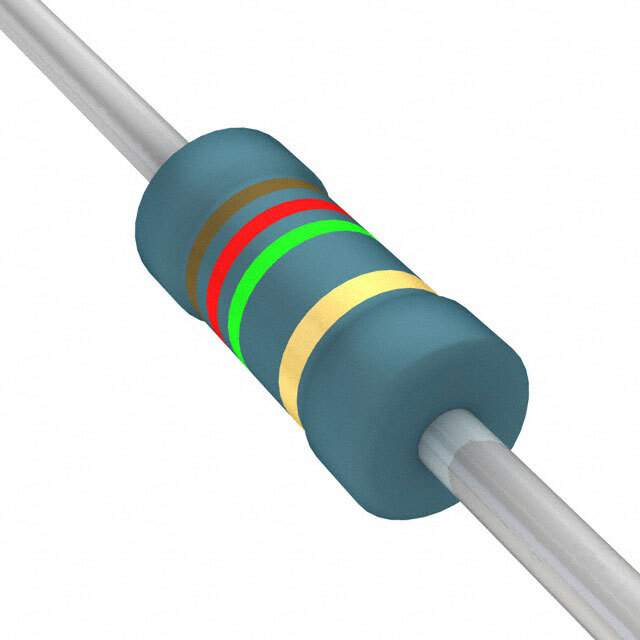

Same model may have multiple batches, images only for reference.

HVR2500001204JA100

Name: HVR2500001204JA100
Brand: Vishay
SKU: 984894
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HVR2500001204JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1.2M OHM 5% 1/4W AXIAL / 1.2 MOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial High Voltage, Pulse Withstanding Metal Film
Datasheet	HVR2500001204JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	HVR25
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	1.2 MOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	High Voltage, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	BC4430CT,BC4430TB
Standard Package	1,000
Win Source Part Number	984894-HVR2500001204JA100
Ultra Librarian 3D Model	Ultra Librarian HVR2500001204JA100 CAD Model

Alternative Products

Description

The Vishay Beyschlag/Draloric/BC Components HVR2500001204JA100 is a 1.2 MOhm, 0.25W, 1/4W axial leaded metal film resistor.

Resistance: 1.2 MOhm
Power: 0.25W, 1/4W
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Application: High voltage and pulse applications
Temperature: Withstand high temperatures up to 155°C
Package: Cut tape or tape and box
