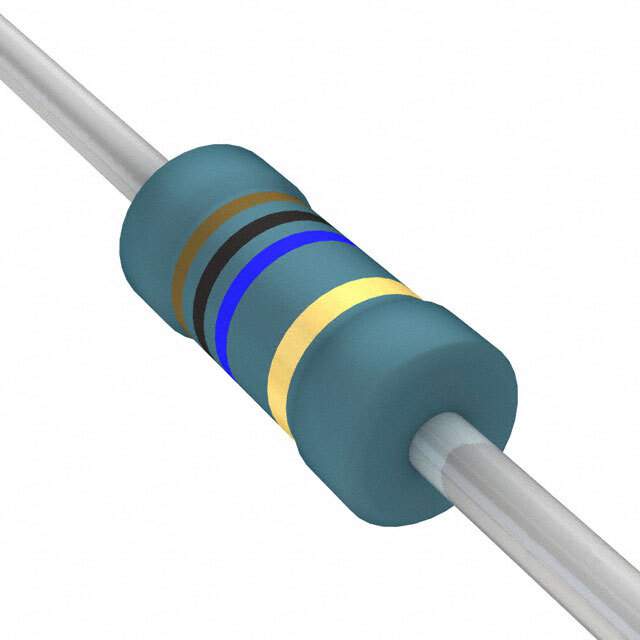

Same model may have multiple batches, images only for reference.

HVR2500001005JA100

Name: HVR2500001005JA100
Brand: Vishay
SKU: 987804
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HVR2500001005JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 10M OHM 5% 1/4W AXIAL / 10 MOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial High Voltage, Pulse Withstanding Metal Film
Datasheet	HVR2500001005JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	HVR25
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	10 mOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	High Voltage, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	BC4429CT,BC4429TB
Standard Package	1,000
Win Source Part Number	987804-HVR2500001005JA100
Ultra Librarian 3D Model	Ultra Librarian HVR2500001005JA100 CAD Model

Alternative Products

Description

The Vishay Beyschlag/Draloric/BC Components HVR25 series resistor is a high voltage, pulse-withstanding resistor with a metal film composition.

Resistance: 10 mOhms
Power Rating: 0.25W (1/4W)
Tolerance: ±5%
Temperature Coefficient: ±200 ppm/°C
Applications: Through-hole
Packaging: Cut tape (CT) and tape & box (TB)
Operating Temperature Range: -55°C to 155°C
