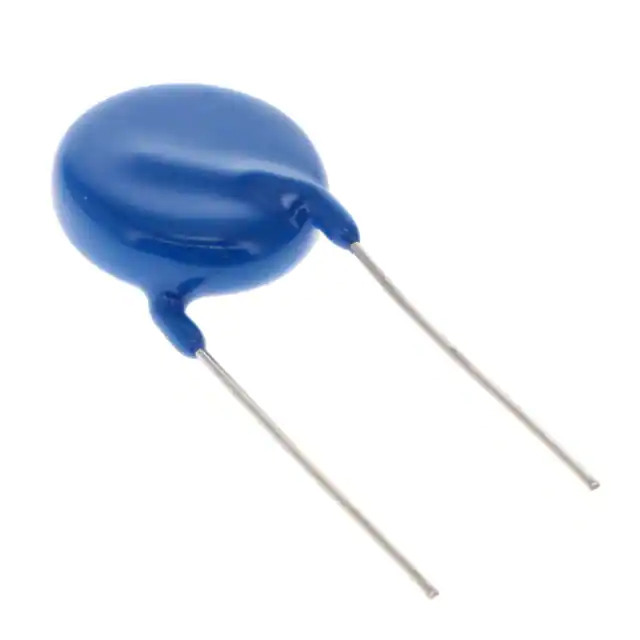

Same model may have multiple batches, images only for reference.
HVCC203Y6P102MEAX Vishay
Same model may have multiple batches, images only for reference.

HVCC203Y6P102MEAX

Part No HVCC203Y6P102MEAX
Manufacturer Vishay
Catalog Ceramic Capacitors
Description HVCC 20KVDC 1000PF 20% Y6P BULK / 1000 pF ±20% 20000V (20kV) Ceramic Capacitor Y6P Radial, Disc
Datasheet
HVCC203Y6P102MEAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series HVCC
Package Bulk
Product Status Active
Capacitance 1000 pF
Tolerance ±20%
Voltage - Rated 20000V (20kV)
Temperature Coefficient Y6P
Temperature Range - Operating -30°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.669" Dia (17.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Thickness (Max) -
Lead Spacing 0.492" (12.50mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1359994-HVCC203Y6P102MEAX
Ultra Librarian 3D Model Ultra Librarian HVCC203Y6P102MEAX CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components HVCC203Y6P102MEAX is a ceramic capacitor from.

  • Series: HVCC
  • Package / Case: Radial, Disc
  • Capacitance: 1000pF
  • Tolerance: ±20%
  • Voltage - Rated: 20000V (20kV)
  • Applications: General Purpose
  • Lead Spacing: 0.492" (12.50mm)
  • Size / Dimension: 0.669" Dia (17.00mm)
  • Height - Seated (Max): 0.827" (21.00mm)
  • REACH Status: REACH unaffected
  • ECCN: EAR99
  • Temperature Coefficient: Y6P
  • Failure Rate: Not Specified
