Same model may have multiple batches, images only for reference.

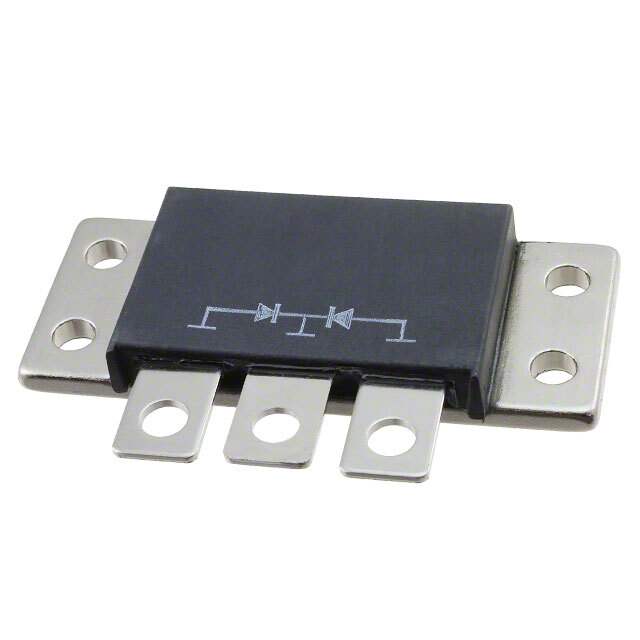

HFA75MC40C Real Image
Same model may have multiple batches, images only for reference.

HFA75MC40C

Part No HFA75MC40C
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 400V 75A TO249AA
Datasheet
HFA75MC40C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) (per Diode) 75A (DC)
Voltage - Forward (Vf) (Max) @ If 1.5V @ 75A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 3μA @ 400V
Mounting Chassis Mount
Case / Package TO-249AA
Win Source Part Number 44992-HFA75MC40C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA75MC40C CAD Model

Description

This obsolete (EOL) electronic component is manufactured by Vishay and has a medium popularity. It is a Discrete Semiconductor Product mounted on a Chassis Mount. The Voltage - DC Reverse (Vr) (Max) is 400V, and the Voltage - Forward (Vf) (Max) @ If is 1.5V @ 75A. The component's Reverse Recovery Time (trr) is 100ns, and the Current - Reverse Leakage @ Vr is 3μA @ 400V. The Diode Configuration is 1 Pair Common Cathode with a Speed(Frequency) of Fast Recovery = 200mA (Io).
