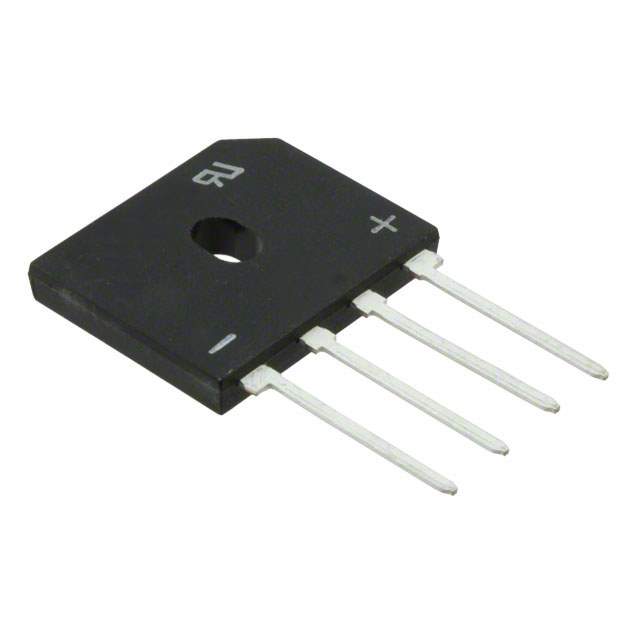

GBU8D-E3/51 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 3.9A
Voltage - Forward (Vf) (Maximum) at If 1V at 8A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Part Number Series GBU8D
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806897-GBU8D-E3/51
Ultra Librarian 3D Model Ultra Librarian GBU8D-E3/51 CAD Model

Description

The GBU8D-E3/51 from Vishay Semiconductor Diodes Division is a single-phase standard diode.

  • Current Rating: 3.9A
  • Voltage Peak Reverse (Maximum): 200V
  • Voltage Forward (Vf) (Maximum) @ If: 1V @ 8A
  • Package: 4-SIP, GBU
  • Current Reverse Leakage @ Vr: 5μA @ 200V
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer Pack Quantity: 250
  • MSL Level: 1 (unlimited)
  • Part Number Series: GBU8D
