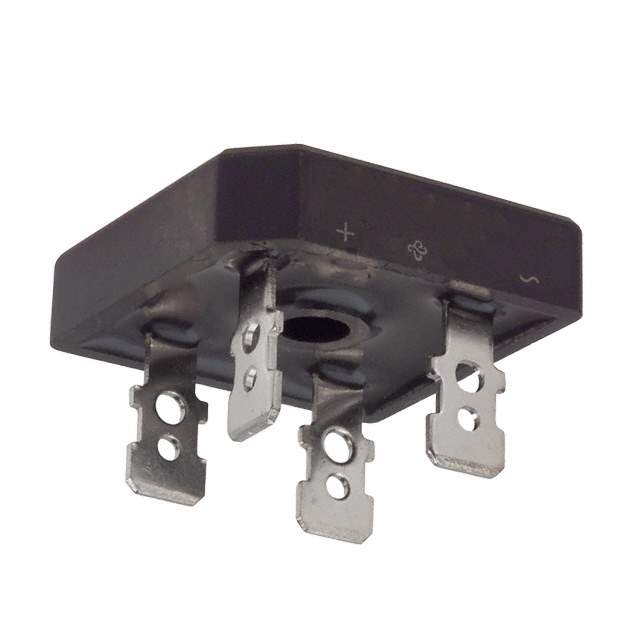

GBPC2502-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC2502-E4/51

Part No GBPC2502-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 200V 25A GBPC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 12.5A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style QC Terminal
Manufacturer Package 4-Square, GBPC
Supplier Device Package GBPC
Part Number Series GBPC2502
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813536-GBPC2502-E4/51
Ultra Librarian 3D Model Ultra Librarian GBPC2502-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBPC2502-E4/51 is a single-phase standard diode.

  • Voltage Rating: 200V
  • Average Rectified Current: 25A
  • Package: GBPC
  • Forward Voltage: 1.1V @ 12.5A
  • Reverse Leakage Current: 5μA @ 200V
  • Packaging: Bulk
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 100
  • MSL Level: Not applicable
