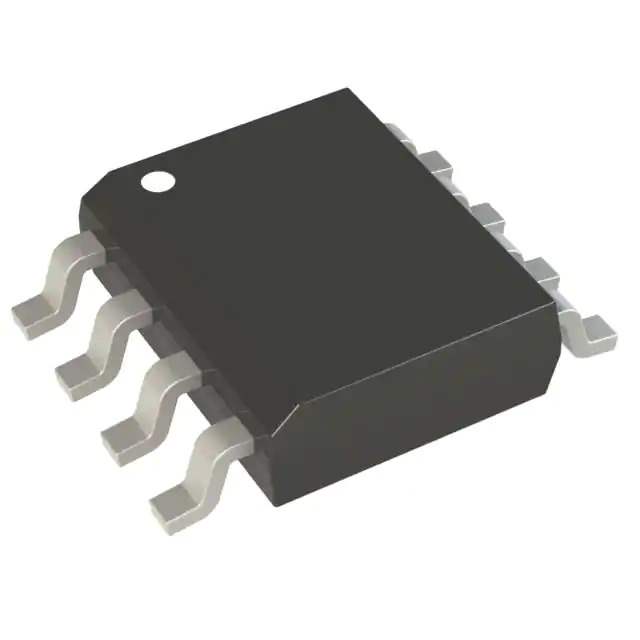

DG419BDY

Name: DG419BDY
Brand: Vishay
SKU: 584866
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DG419BDY
Manufacturer	Vishay
Catalog	Interface - Analog Switches, Multiplexers, Demultiplexers
Description	IC SWITCH SPDT X 1 25OHM 8SOIC
Datasheet	DG419BDY Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr	Vishay
Package	Tube
Product Status	Obsolete
Switch Circuit	SPDT
Number of Circuits	1
On-State Resistance (Max)	25Ohm
Voltage - Supply, Single (V+)	13V ~ 36V
Voltage - Supply, Dual (V±)	±7V ~ 22V
Switch Time (Ton, Toff) (Max)	89ns, 80ns
Charge Injection	38pC
Channel Capacitance (CS(off), CD(off))	12pF, 12pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-88dB @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Product Number	DG419
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	584866-DG419BDY
Ultra Librarian 3D Model	Ultra Librarian DG419BDY CAD Model

Description

The DG419BDY is an analog switch IC from Vishay.

Switch Type: Single-pole double-throw (SPDT)
On-State Resistance: 25 Ohm (max)
Voltage Supply: 13V to 36V (single supply), ±7V to ±22V (dual supply)
Switch Time: 89ns (turn-on), 80ns (turn-off)
Charge Injection: 38pC
Current Leakage: 250pA
Channel Matching: Excellent
Crosstalk: -88dB @ 1MHz
Package: 8-SOIC
Mounting: Surface mount
Temperature Range: -40°C to 85°C
Interface Applications: Analog switches, multiplexers, and demultiplexers
